Light Duty Walk Behind Concrete Laser Screed Used in Steel Rebar

Product Description

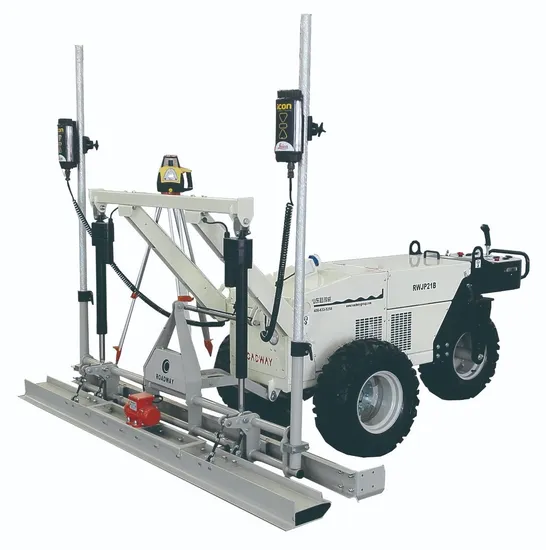

Concrete walk behind Laser screed
The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.

1. Screed assembly is hydraulic controlled. Integrated with laser system and computer control system, the machine will self-level and finish the screeding work with high efficiency.
2. The Laser transmitter which measures the elevation is independent located, so there is no worry about the accumulative error. Compared with the traditional way, the construction joints will be greatly reduced, so the maintenance cost and slab use will be down greatly. For the complex floor which has high requirement for drainage, the 3-D floor processing system can be used. RWJP21

RWJP21B

Model	RWJP21B	RWJP21
Engine
Model	HONDA generator set	HONDA generator set
Power	2.0kW	2.0kW
Fuel tank L	14.5L	14.5L
Running device
Drive	Electrical Motor	Electrical Motor
Running type	Electric control, stepless speed	Electric control, stepless speed
Wheel	3 wheels, solid puncture-proof tyre	2 wheels, solid puncture-proof tyre
Running speed	0-36m/min	0-36m/min
Suggest working speed	5m/min(adjustable)	5m/min(adjustable)
Screed head
Type	Electric control, self-leveling	Electric control, self-leveling
Width	2500mm	2500mm
Exciting force	500N	500N
Vibration frequency	50Hz	50Hz
Laser control system
Control type	Microcomputer control	Microcomputer control
Size and weight
Working size	2860×2622×1980mm	2758×2622×1980mm
Weight	395kg	292kg

FAQ
1.Does your product support customization? Can I put my logo on the product?
Yes,we support customization, labeling and color change.
2.What is the packaging of the product?
Smokeless plywood.
3.What certificates does the product have?
CE,ISO9011.
4.What is the minimum order quantity?
1 unit.
5.What information do I need to provide for a quotation? Do you have a product quotation sheet?
Leave your contact information and we will contact you ,send you our quotation.
6.How long does the delivery time usually take?
Usually is 15-30days.
7.Does your company provide after-sales service?
1 year warranty,If there are quality problems with the accessories during the warranty period, we will replace them free of charge. We are not responsible for any human caused issues.
