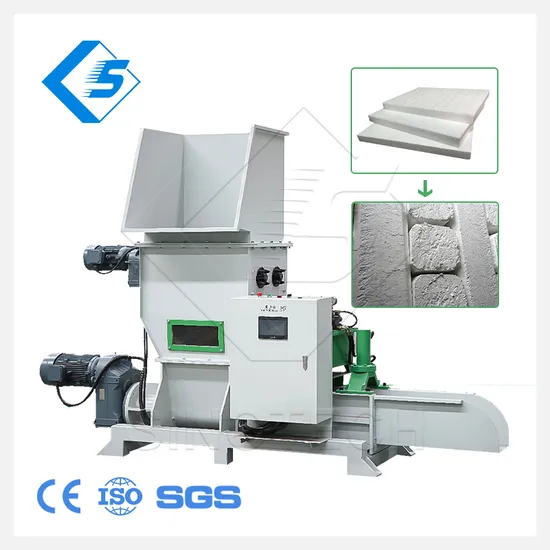

Waste Polystyrene Styrofoam EPS Foam Board Block Scrap Hot Melting Recycle Compactor Machine

Product Description

waste Styrofoam EPS foam board block scrap hot melting recycle compactor machine
EPS compactor can reduce the size of the EPS material, the compressing ratio can reach1:30-1:50.The finished products is the EPS blocks, the density can reach 350kg/ m3 .It is easy for the customer to deliver the EPS material to another recycling processing unit.

This EPS compactor is mainly used for waste disposal, including: paper, EPS (polystyrene foam), EPE PUR EVA and so on. The material through the mill to be ground into a block compaction process.

Through numerous experiments on the EPS compactor and continuous improvement, to create a superior performance. EPS compactor is controlled unit is based on PLC automatic control system and a peripheral circuit performance is extremely reliable.

First with the crusher and the screen on this compactor to get the small size of the material, then after the material fall down into the screw, the main motor push the material forward in the screw, meanwhile the hydraulic system on the mould head close to press the EPS material, the EPS material will come out by blocks, it can reduce 30-50 times space for the material, and easy to move an delivery. All the parts of the machine we composed into one machine, save cost , power consumption, and space for the machine. The EPS blocks can be crushed again to process to the next unit.

The EPS compactor which capacity is 100kg/h from , with the 2.2kw crusher and 7.5kw screw motor. The EPS compactor is suitable for the big super market, seafood market, it is also fit for the middle size EPS waste recycling companies to compact the waste material. The customer will get the EPS block for 250mmX250mm size.

EPS Compactor
Model	SN-HM-200
Capacity	100kg/h
Screw diameter	φ290mm Q235-A
Input size	1000mmx600mm
Screw rotation speed	36rpm
Crushing blade	2Sets 9+10
Blade rotation speed	120rpm
Main motor	7.5 kw
Crusher motor	2.2kw X 2
Hydraulic station motor	1.5 kw
Production size	250×250mm
Outline	3000×1300×2100
Weight	1400Kg
