Box Frame Disc Harrow Tandem Opposed Disc Harrow
| US$450.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
1BQDX
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Tractor
Arbor Configuration
Vertical Shaft
Color
Custom
Warranty
1 Year
Transport Package
Iron Frame
Specification
350KG
Trademark
LEYUAN
Origin
Shandong China
HS Code
84321000
Production Capacity
5000set /Year
Product Description

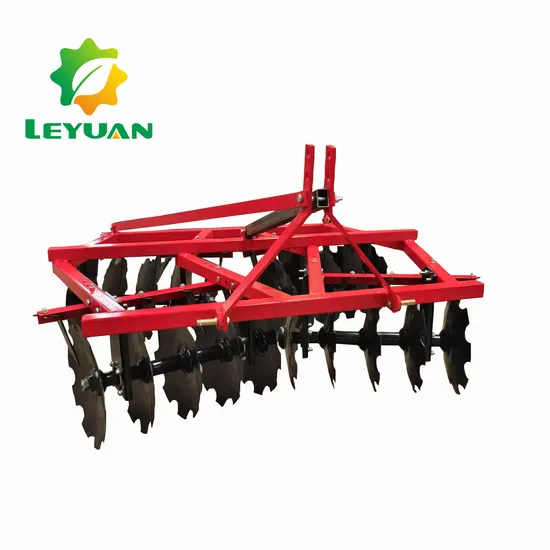

Product Description1BQD series of opposed light disc harrow for 30-80hp farm tractorIt is designed and manufactured by our company combined with the foreign technology,mainly used for crushing and loosening the soil after tillage,planting the field before seeding and mixing the soil and fertilizer,etc.
It features on reasonable structure,firmness for long-lasting operation,easiness to be handled and maintained,even field after tillage without deflective trailed force and so on.
It is a mounted opposed light disc harrow for 30-80hp tractor.
High efficiency,strong ability of soil pulverization.
The working depth of this disk harrow can be adjusted freely though adjust the angle between the disc frame.
Product Parameters
| Model | 1BQDX-1.3 | 1BQDX-1.6 | 1BQDX-2.0 | 1BQDX-2.4 | 1BQDX-2.8 | 1BQDX-3.0 |
| Working Width (mm) | 1300 | 1600 | 2000 | 2400 | 2800 | 3000 |
| Working Depth (mm) | 140 | |||||
| Disc Dia.(mm) | 460 | |||||
| Disc Qty | 16 | 20 | 24 | 28 | 32 | 36 |
| Weight (kg) | 330 | 390 | 460 | 560 | 600 | 650 |
| Tractor power (hp) | 35-40 | 40-45 | 50-60 | 60-75 | 75-85 | 85--100 |
| Linkage | Mounted | |||||
