China Factory Lithium Battery 4 Wheel Electric Forklifts 1.5 Ton 2 Ton 3 Ton 3.5 Ton Electric Forklift

Product Description

Electric Forklift Truck Battery Forklift 1-3.0Ton Are Available

Characteristics of electric forklift:
1.Load Capacity: 1500-3000kg
2.Lifting Height: 3000-7000mm
3.SME/ZAPI/CURTIS AC power controller
4.Wide-view Mast
5.Solid Overhead Guard
6.ZAPI/CURTIS Controller
7.Ergonomics Seat
8.Long Life Rechargeable Batteries
9. Flexible car body, small turning radius.

Technical Specification Of Electric Forklift:

General	1	Model			FB15	FB20	FB25	FB30
	2	Rated Capacity		kg	1500	2000	2500	3000
	3	Load Centre		mm	500
	4	Lift Height		mm	3000
	5	Fork Size	L×W×T	mm	920×100×35	1070×122×40		1070×125×45
	6	Mast Tilt Angle	F/R	Deg	6°/12°
Characteristic & Dimension	7	Overall Dimension	Length to face of fork (Without fork)	mm	2060	2310		2525
	8		Overall Width	mm	1070	1150		1225
	9		Mast Lowered Height	mm	1985			2065
	10		Mast Extended Height (With backrest)	mm	4030			4150
	11		Overhead Guard Height	mm	2130			2170
	12	Min. Turning Radius		mm	1900	2120		2275
	13	Front Overhang (Wheel center to fork face)		mm	420	470		475
	14	Tread	Front/Rear	mm	890/920	960/950		1000/980
	15	Min. Ground Clearance		mm	100	110		130
	16	Wheelbase		mm	1250	1450		1600
	17	Fork Spread	Min./Max.	mm	200/950	245/1020		250/1090
Chassis & Performance	18	Speed	Travel (Full load)	km/h	12/14	11.5/13		11/13
	20	Gradeability	Laden	%	15/16			13/15
	21	Service Weight		kg	2990	3800	4100	5050
	22	Tire	Front×2		6.50-10-10PR	7.00-12-12PR		28x9-15-12PR
	23		Rear×2		5.00-8-10PR	18x7-8-14PR
Power & Transmission	24	Motor	Drive Motor	kw	5.2/7.5	6.5/11		10.2
	25		Lift Motor	kw	8.2/9.2	8.6/11		12
	26	Battery	Standard	V/Ah	48/400	48/620		80/500
	27	Controller	Manufacturer		ZAPI/CURTIS/SME
	28		Type		DC/AC

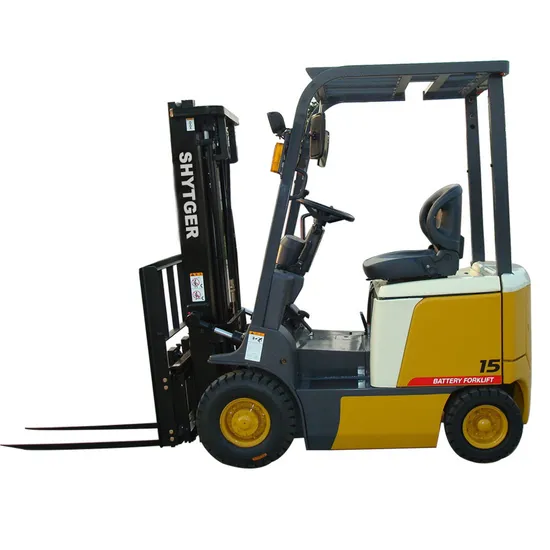

Actual Photoes Of Electric Forklift:
Package Way Of Electric Forklift:
Shipment & Payment:
1.T/T(100% T/T,30% deposit for production and 70% balance of settlement for shipment)
2.L/C(100% L/C)
3.Shipment time:15-20 days after received the 70% balance.
FAQ:
1.Does the forklift battery can be changed?
Yes,as your request
2.Does the color can be customized?
Yes,all color are available.
3.What kinds of forklift you can supply?
Diesel,gasoline,LPG dual fuel,electric power are available.
