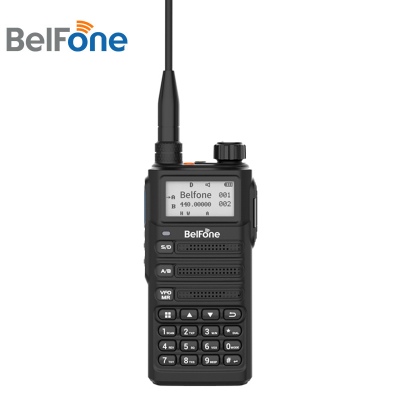

Belfone UHF VHF Dual Bands Analog Two-Way Radio for Ham (BF-SC500UV)

Product Details

Product Description

Product Description
UV Dual Bands
BF-SC500UV is capable of cross-band operation. When not transmitting, it can receive both VHF signals and UHF signals, although not simultaneously. The users can keep two talk groups at the same time, delivering more convenience.
Switchable Powers
The user can switch transmitting power (H:5W/ M:3W/ L:1W) according to his specific communication needs, which makes BF-SC500UV way more flexible and convenient than most.
VOX
With a paired microphone, the user can active the transmitting function through voice only and no longer needs to press the PTT button.
Lighting/ Flashlight
The built-in flashlight drives darkness away when the user is operating in a dark environment. BF-SC500UV brings more light into your work and life.
Wide/Narrow Bands Switchable
This function enables the user to set your bandwidth (two optional bandwidth, wide bandwidth: (25KHz)narrow bandwidth: (12.5KHz)). Screen display "W" means wide bandwidth& screen display "N" means narrow bandwidth.
CTCSS/CDCSS and STE
This can effectively prevent interferences from other conversations at the same frequency. Unwanted signals are filtered out
Product Parameters

General
Frequency Range	VHF:136-174MHz UHF:400-470MHz 350-390MHz(receive only) 87-108MHz(receive only)
Channel Capacity	255
Operating Voltage	DC7.4V (±20%)
Battery Capacity	2600mAh
Power output	H:5W M:3W L:1W
Dimensions	59(L)×36(W)×124(H)mm
Weight	270g (including battery pack)
Environmental Specifications
Dust& Water Proof	IP 54
Working Temperature	-20ºC~+60ºC
