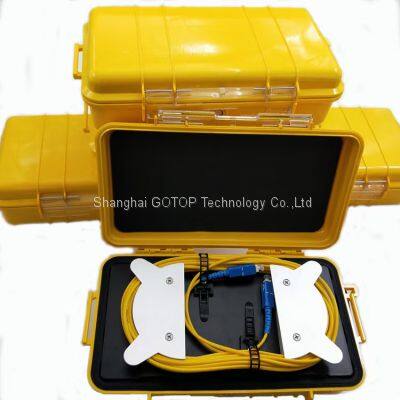

OTDR Launch Cable Box

Product Details

Product Description

Product Description
Brief Introduction:
Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in many different configurations and fiber lengths
Features:
w Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
w Compound Latch for positive seal and easy opening with locking feature.
w Non­metal construction will not dent, corrode, or conduce electricity
w Water and dust prove allowing the unit to be taken into almost any environment
w Case can house up to 2,000 meters of fiber
w Auto Purge Valve for changes in altitude and temperature
Specifications:

Mechanical Environmental Characteristics
Dimension	9.37" x 5.56" x 2.62"
Material	SR Polypropylene
Color	Yellow
Weight	0.75 kg (without fiber)
Packaging	Rugged,hard-shell transit case
Storage Temperature	-40 ~ +85°C
Operating temperature	-40 ~ +85°C
Humidity	0~95% (no condensing)

Fiber & Connector Characteristics
Fiber Types	G652D
Lead Length	2 Meters,3mm buffer
Typical Loss	<1dB@1310 for 1000 meters
Connector Type	SC/LC/FC/ST
Polish	UPC,APC
Return Loss	UPC>=50dB,APC>=60dB
Repeatability(dB)	<=0.2(1000 times)
Exchangeability(dB)	<=0.2

Ordering Information

OTDR-A-B-C-D
A for Input connector	B for Output connector
C for Fiber Mode	D for Length
For Example: OTDR-SC-FCA-SM-1KM;1KM SM ,SC on I/P lead, FC/APC on O/P lead
