F-50L Lab Smart Temperature Transmitter Sealed Ptee Material Single-Layer Glass Reactor

Product Description

F-50L Lab Smart temperature transmitter Sealed PTEE material single-layer glass reactor Product Description

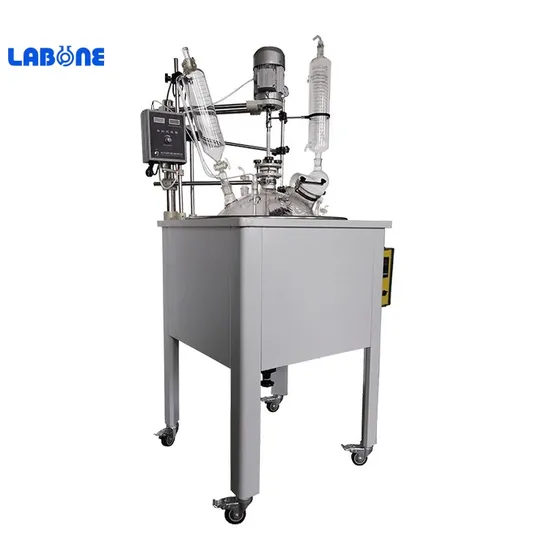

F-50L Single layer glass reactor
Product parameters
The single-layer glass reactor is a multifunctional reactor that can carry out various biochemical synthesis reactions under constant temperature conditions, and can also perform reflux or distillation at different temperatures. The single-layer glass reactor is efficient, stable, beautiful and durable.
Features:
The F series single-layer glass reactor is a multi-functional reactor that can carry out various biochemical synthesis reactions under constant temperature conditions, and can also perform reflux or distillation at different temperatures.
1.Sealed PTEE material, strong sealing, anti-corrosion and wear resistance
2.Electronic stepless speed regulation, smooth operation
3.Clear display of control and data information plane, digital display of speed
4.Smart temperature transmitter, digital temperature display
5.Distillation and reflux can be carried out at the same time
6.Large aperture discharge valve, can discharge solid and liquid materials
7.Large diameter cleaning port for easy cleaning
8.Double reflux, integrated standard port condenser tube
9.The main structure is made of stainless steel and aluminum alloy
10.Efficient and stable, beautiful and durable Detailed Photos
Product Parameters
Specifications

Basic specification	Name	F-50L
	Glass material	GG-17
	pot shell material	Spraying antiseptic shell 740*640*960mm
	Inner port material	stainless steel 550*320mm
	Moving mode	Brake type universal corner wheel
	Volume	Ball type 50L
	Port No. of reactor cover	7
	Distance between discharge to floor	450mm
	Temperature range	.-80 to 250degree
	Vacuum	0.098Mpa
	Stirring speed	0-450rpm
	Stir rod diameter	12mm
	Stir power and voltage	120W1/3 220V/50Hz
	Heating power and voltage	8KW 380V/50Hz
	Overall size (mm*mm*mm)	800*640*2200
	Package size (mm*mm*mm)	1440*720*890 0.93CBM
	Gross weight(KG)	90
Configuration list	Speed display mode	Electronic stepless speed regulation
	Motor	Low speed booster motor, speed ratio 3: 1
	Speed display mode	LCD digital display
	Temperature display	digital display
	Seal	PTFE seal, ¢70 flange stir port
	Condenser	Vertical high efficiency double reflux condenser 120*640mm, standard 40#
	Reflux (distillation) device	Return bend with feeding switch, 50# ball mill port
	Drop adding device	2L Constant pressure funnel, 34 standard
	Pressure release device	standard 34# pressure release valve
	Temperature tube	standard 24#
	Solid adding (cleaning) port	¢120 flange port with PTFE cover
	Discharge	glass discharge valve, ¢80 flange port
	Vacuum display mode	Vacuum gauge
	Mixing connection	universal joint link
	Stir rod	Anchor type, Stainless steel rod with PTFE

Certifications
Packaging & Shipping
Company Profile
Zhengzhou Labone Instrument Co., Ltd(Labone) is located in Zhengzhou City, Henan Province, China. Our company specializes in international export business of reaction equipment, distillation equipment, drying equipment, purification equipment, chemical machinery, laboratory equipment, analytical instruments, etc.
Over the past 20 years, it has exported products to more than 100 countries in the world. It is one of the largest and most comprehensive instrument manufacturers in China. Our products are sold to Asia, Africa, Antarctica, South America, North America, Europe, and Oceania.
Customer feedback: Our Advantages
Professional FactoryLABONE 22 year's focus on chemical machinery industry, 9 years of export in chemical industry, professional, dedicated and persistent.Special CustomizedOne-to-one professional customization is available, and we will recommend it to you based on the size of the factory and the size of the output.Delivery speedSamples are produced in three days and shipped in seven days, shortening the delivery cycle.Quality ControlAll materials are made of high-quality materials that have passed national quality inspection and are safe and reliable.After sales serviceAll products of LABONE are guaranteed for one year, lifelong maintenance, 24 hours after sales technical support and service hotline.
FAQ
Q1: Why Choose LABONE?(1).Professional export company with more than 9 years experience(2).Exported to more than 90% Countries(3).Turnkey Solution is no problemQ2: Is OEM,ODM service available?Most of the products are available for OEM customization.Q3:What's kind of Payment terms for customer choosing?T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...Q4:Can online video inspection before shipment?Absolutely no problemQ5: what's the MOQ ? MOQ: MOQ can accept 1setQ6:What's kind of shipment for customer choosing?Transported by DHL, UPS, EMS, Fedex, Air freight. sea freight.We can also provide reasonable solutions according to your transportation requirementsQ7: After-sale service:1 year warranty for all kinds of products;If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
