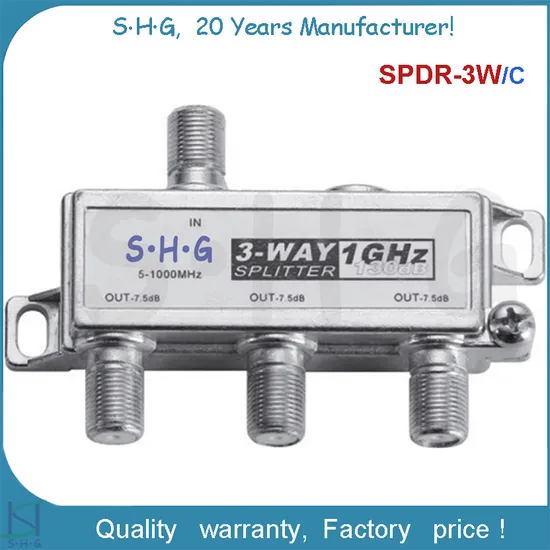

5-1000MHz/1218MHz Balance/Un-Balance 3 Way Indoor CATV Splitter

Product Description

SHG high quality 5-1000MHz 5-1218MHz Balance / un-balanced 3 way Indoor CATV Splitter.
Features:
1. Low insertion loss, high return loss and isolation.
2. Die cast aluminum housing
3. RF frequency range 5 to 1000 MHz
4. CE, RoHS, ISO9001
Descriptions:
AC/RF bypass switch to provide uninterrupted downstream-subscriber service
Economical two-step upgrade to power passing matches incremental expenses with new revenues
AC blocking capacitors on each port to minimize RF signal distortions
Surge-resistant circuitry srctm for maximum reliability
1, 2, 4, 8-way capability for maximum design flexibility
Housing backwards compatibility supports economical faceplate upgrades
System open circuit time 0 ms
Mechanical:
Al360 housing with powder coating for superior environmental protection.
Sealed and swaged extended f-ports for maximum resistance to moisture ingress.
Tin plated brass f-ports to ensure a corrosion-resistant drop interface.
Operating temperature from -40degree to +60 degree.
EMI shielding minimum -110 dB.
Pressure test at 10 psi for 60 seconds under water.
Others:
CATV outdoor taps (power passing)
CATV outdoor taps (non power passing)
CATV outdoor splitters
CATV indoor taps and splitters
CATV power inserters
CATV power supply

ITEM		Model: SPDR-xW
		SPDR-2W	SPDR-3W	SPDR-4W
Splitting Loss (dB)	5-50MHz	3.5	5.8	7.0
	50-550MHz	3.6	6.0	7.0
	550-750MHz	3.8	6.5	7.5
	750-1000MHz	3.8	6.5	7.5
Isolation (dB)	5-50MHz	30	28	28
	50-550MHz	30	28	28
	550-750MHz	30	28	28
	750-1000MHz	30	28	28
Return Loss (dB)	5-50MHz	22	20	20
	50-550MHz	20	20	20
	550-750MHz	20	20	20
	750-1000MHz	18	18	18
Shield Factor (dB)		≥110
Dimension (mm)		54x47x15.5	54x47x15.5	76x47x15.5
Weight (g)		28.5	31.5	41
