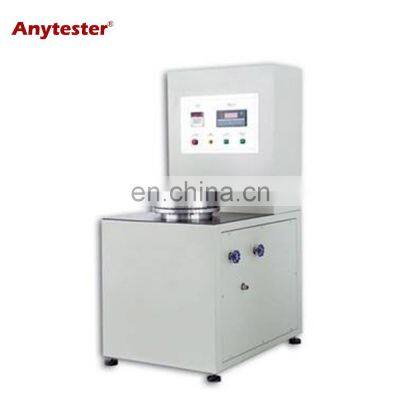

Hydrostatic Pressure Resistance Test Apparatus For Geomembrane

Product Description

Product Description
ApplicationHY2360 Hydrostatic Pressure Resistance Test Apparatus is used to determine the resistance to hydrostatic pressure and the permeability coefficient of geomembrane, geocomposites consisting of one or two layers of non-woven geotextile and one layer of membrane and other waterproof membrane materials under specified hydraulic pressure differences. Standard JTG E50 T1142GB/T 19979.1, GB/T 19979.2 Note: this Hydrostatic Pressure Resistance Test Apparatus can conform to but not limit to all the standards above, for more standards conformance, please contact us.features1. 2 test item: resistance to hydrostatic pressure and permeability coefficient2. 2Cr13 stainless steel clamps and porous board3. Three time units: hour, minute and second, selectable4. Pressure mode: Hydraulic pressure and air pressure5. High-precision pressure measuring deviceSpecification ModelHY2360Hydrostatic Pressure ResistanceTest ApparatusCapacity of permeated water collection tube 15mlReadability of permeated water collection tube 0.1mlInner diameter of catchment ¢200±5mmDiameter of holes on porous board 3±0.05mmSpace between holes on porous board 6mmPressure measuring range0~2.5MpaPressure measurement resolution 0.01MpaAccuracy of pressure control±2%Power supply AC 220V 50HzDimensions 600×850×1360mm (L×W×H)
