CD-60z Automatic Spandex Tube Sorting Printing Machine

Product Description

Machine Name

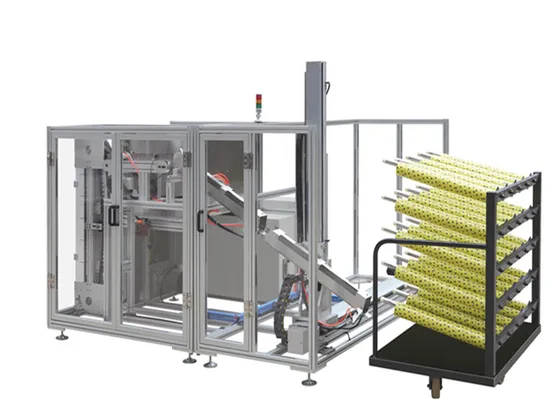

CD-60Z Automatic spandex tube sorting printing machine
Machine Usage
Just put the tubes into the machine hopper,automatically sorting and aligning,transporting the tubes into the tracks.Steps controlled by photo electrical program,using the chain track to convey the tubes into printing station.The output quantity is controlled according to user's demand.PLC controlled all processes,all information will be displayed on the computer.After printing the tubes,the robot will unload the tubes to each position of the tube storage shelf.(Remark:The standard tube storage shelf provided by the users)
Usage:Spandex yarn,textile,adhesive tape,etc

Product Parameters

Compressed air	3-5Mpa
Air consumption	0.5 m³/min.
Power supply	380V 50Hz
Max power	5 Kw
Power consumption	Average 3Kw
Production speed	60 pcs/min.
Printing speed	50 pcs/min.
Overall size	2900*2170*1720mm
Weight	About 1500kg

Company Profile

Zhejiang Chengda Machinery Co.,Ltd.(Previous name:Ruian Chengda Machinery Co.,Ltd.) established in the year of 2009 with employees of 50 and official production area about 4000 m2 .
In 2019,listed on the growth board of Zhejiang Stock Market. Referred to as Chengda Stock,company code:803952
Since the company establishment,we focus on the development and the production of the automatic blister packaging machine and custom automation equipment.
In the serials of the blister machine,there are varies models for choosing to meet different packaging requirements.
The blister packaging can be many types,such as Blister-Card,Card-Blister(Single blister or alu.-blister pack)-Card, Blister-Blister,Stand Up Blister,and also the soft/rigid blister with soft film covered for medical use.We can help users to improve the whole production line,not only the front procedure but also the latter procedure.
Depending on the proven technology and the reliable after-sales security system,our machines receive the recognition of all customers.
We serve for the famous companies in the world,such as P&G,Duracell,Energizer,Spectrum Brands,Mentholatum,Korea Hyosung,Huafon Group,Deli Stationery,GP battery,Nanfu,Changhong,Mustang battery,Dongshan battery,Zhongyin battery,etc.
After years of experience,we deeply understand that blister packaging does not have standard equipment.But we are more willing to try to research and development and innovation,so that non-standard equipment can be realized and our customers can receive better services.
FAQ
Q:How to get a quotation for the blister packing machine?
A:Please offer the packing requirements in details.Such as the packing photos,sizes/drawings,production capacity required,
Q:Can the machine be custom-made?
A:Yes!Just tell us what you need to do.
Q:How about the machine warranty?
A:One year warranty for machine.We will offer free spare parts if any parts broken during its period.
Q:How to install the machine,is it easy?Since now for the COVID-19,you can't dispatch your technician or engineer.
A:Yes,it's easy.We will offer the operation manual and videos to guide customers how to install the machine.And we can make video chat online.
