concrete shotcret Refractory Gunning Machine Concrete Spray Shotcrete Gunite Machine Wet and Dry Shotcrete Machine for Sale
| US$10,000.00-12,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LSZ-10S/E
Type
Shotcrete
Shotcrete Type
Dry and Wet
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
10m3 /H
Feeding Height
1.17m
Certification
ISO9001: 2000, CE, SGS
Condition
New
Color
Yellow
Product Name
Shotcrete Machine
Machine Type
LSZ-10S/E
Power supply
AC380V 50Hz three-phase
Motor power
7.5kw
Air consumption
10 m3/min
Working pressure
0.2Mpa
Rotor speed
12.3rpm
Rotor size
14.5 liters
Theoretical output
10m3/h
Recommended hose size
D64mm
Max. aggregate size
20mm
Weight
1000Kg
Max. conveying distance
Dry: 200m/100m
Max. conveying distance 1
Wet: 40m/15m
Transport Package
Plastic Wrap, Plywood Case, Free-Fumigation
Specification
ISO, CE, SGS
Trademark
Leadcrete
Origin
China
HS Code
84743100
Production Capacity
5000 Sets/Year
Product Description

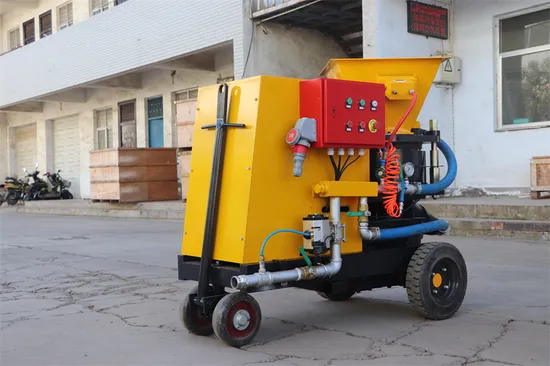

concrete shotcret Refractory Gunning Machine Concrete Spray Shotcrete Gunite Machine Wet and Dry Shotcrete Machine for Sale Product DescriptionLSZ-10S/E Shotcrete machine is a multifunctional rotor type machine for wet and dry spraying and conveying. The materials that can be sprayed and conveyed are concrete, mortar, refractory, sand, pea gravel and crushed stone.
Compared with traditional shotcrete machines, LSZ-10S/E has the advantage of being lighter and more compact. In addition, LSZ-10S/E is equipped with a rubber sealing plate lubrication system, which can effectively reduce the wear of rubber plates, longer service life and better sealing effect.
Please send an inquiry for more information and quotation!
Detailed Photos
Advantages and Benefits
1. Theoretical displacement can be adjusted.
2. Easily overcome obstacles of long or high conveying distances (dry mix).
3. Less dust development.
4. Equipped with an automatic lubrication system, the rubber plate has a longer service life.
5. For concrete repair, slope stabilization, excavation support, or mining.
6. Light and compact machine design.
The main structure
| 1 | Modify clamp |
| 2 | Rotor |
| 3 | Upper rubber plate |
| 4 | Hopper seat |
| 5 | Lower rubber plate |
| 6 | Clamp |
Dimension
Product Parameters
| Name | Data | |
| Machine type | LSZ-10S/E | |
| Power supply | AC380V 50Hz three-phase | |
| Motor power | 7.5kw | |
| Air consumption | 10 m3/min | |
| Working pressure | 0.2Mpa | |
| Rotor speed | 12.3rpm | |
| Rotor size | 14.5 liters | |
| Theoretical output | 10m3/h | |
| Recommended hose size | D64mm | |
| Max. aggregate size | 20mm | |
| Max. conveying distance horizontal/vertical | Dry: 200m/100m | |
| Wet: 40m/15m | ||
| Dimensions | Length | 1950mm |
| Height | 1375mm | |
| Width | 856mm | |
| Weight | 1000Kg | |
| Based on a theoretical filling level of 100%. Before use or processing, always consult the current product data sheet of the products used. | ||
