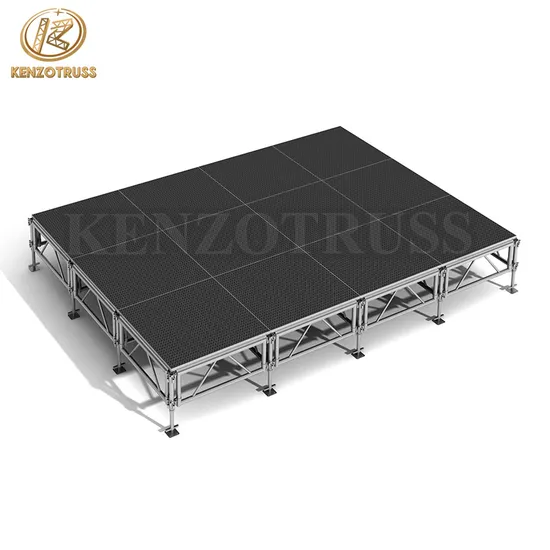

Portable Aluminum Stage Mobile Truss Stage Wooden Platform Stage for Event

Product Description

Portable Aluminum Stage Mobile Truss Stage Wooden Platform Stage for Event

Frame material	Aluminum 6061-T6
	US Standard Portable Stage	EU Standard Portable Stage
Platform size	4'x4'/4'x8'	1m x1m /1m x2m
Height options	16''/24''/32'',24''/32''/40'', 32''/40''/48'',40''/48''/52''	0.4m/0.6m/0.8m, 0.6m/0.8m/1.0m, 0.8m/1.0m/1.2m, 1.0m/1.2m/1.5m, 1.5m/1.7m/2.0m
Platform material	laminated plywood 18mm / Toughened glass / Plexiglass / carpet / rubber /etc.
Aluminum Frame tube	Main tube: 50*3mm Brace tube: 25*2mm
Platform color	Red / black / brown, etc.
Adjustable height	0.4m-0.8m, 0.6m-1.0m, 0.8-1.2m, 1.0m-1.5m, 1.2m-1.6m, 1.5m-1.8m, 1.6m-2m...
Stage shape	Rectangle, square, T-shape, round; custom-made available
Optional accessories	Guardrail, step-stair, ramp, aluminium platform trolley, dolly, skirts

TUV Load Test Report
Our Advantages We have rich experience in aluminum stage truss industry. We have strict quality control procedures and professional after-sales guidance services. All products can be OEM and meet your requirements. We can provide free drawings of design with you for your special request. And you can enjoy
long-term technical advice from our enginnering designers who buy our products. We will assemble and test all products before delivery. Favorable price---with competitive price under the assurance of quality.
Features of stage components
Platforms:
• Lightweight and compact for easy setup, transport and storage.
• Water resistant Industrial finish.
• An aluminum lattice structure construction with a weight capacity of up to 800 KGS/sq. meter.
Legs:
• Lightweight legs can be adjusted at 24, 32, 40 or 48 inches (60, 80 100 and 120cm) using interchangeable leg extension tubes.
• Legs are shared between adjacent platforms.
• Accessories such as rubber mats, slope adjustment wedges and spikes for soft ground and slope applications are available.
Side Braces:
• Lightweight and strong tubular aluminum construction.
• Side Braces are shared between adjacent platforms.
Stage Components Details
1. 18mm plywood with anti-slip laminated surface, and aslo covered by waterproof and fireproof paint on the whole surface. Black and red for option.


2. Strong back frame design allows our stage has a excellent load capacity of 800 kg/sq.m.

3. 3mm wall thickness aluminium tube for the stage leg.

4. Aluminum pin and stainless steel cotter prolong the stage service life.
Other Kind of Stage We Have
FAQ
Mr. Robert: What frame you make for 4ft*4ft stage flooring ?
A: Cross frame for 4ft*4ft stage deck. And cross frame use 30x40mm square tube, which is quite stronger!
Mr. Ganesh: I want good quality stage, stage leg what size mm pipe? And what height
options are available ?
A: 50x3mm, pls see details as below picture.
Euro Standards : 40-80, 60-80-100, 80-100-120cm, 100-120-140cm and so on.
American Standards: 16"- 24, 24"- 32"- 40", and 32"- 40"- 48" , 40"- 48"- 52".
Stage legs have inter pipe which is used to adjust the height of stage.
