Wire Drawing Die with Nano Diamond Coating PCD Drawing Die

Product Description

Product Description
High Quality PCD Dies For Steel Wires, Stainless Steel Wires
Polycrystalline Diamond (PCD) products produced by ultra-high temperature and ultra-high pressure, during process diamond powders are sintered together with strong grain-to-grain bonding in the presence of several metal catalysts. PCD dies have not only high wear resistance, hardness, and thermal conductivity, but also high mechanical strength and tenacity which are suitable for high-speed drawing of nonferrous wires such as bronze, aluminum, and nickel and that of stainless steel and other alloy wires. Product Parameters

Size Range (Soft Wire)	Minimum Tolerance	Case Diameter	Case Height
0.1-0.5	±0. 001	25/28	8/10
0.5-0.8	±0. 003	25/28	8/10
0.8-1.0	±0. 003	25/28	8/10/12
1.0-1.5	±0. 003	25/28	10/12
1.5-1.8	±0. 003	25/28/30	10/12/15
1.8-2.3	±0. 005	25/28/30	12/14/15
2.3-2.9	±0. 005	35/40	20/25
3.0-3.2	±0. 005	40/50/60	23/25/27
3.2-3.4	±0.01	40/50/60	23/25/27
3.4-4.0	±0.01	40/50/60	23/25/27
4.0-5.0	±0.01	40/50/60	23/25/27
6.0-6.5	±0.01	40/50/60	23/25/27
6.5-8.0	±0.015	40/50/60	23/25/27

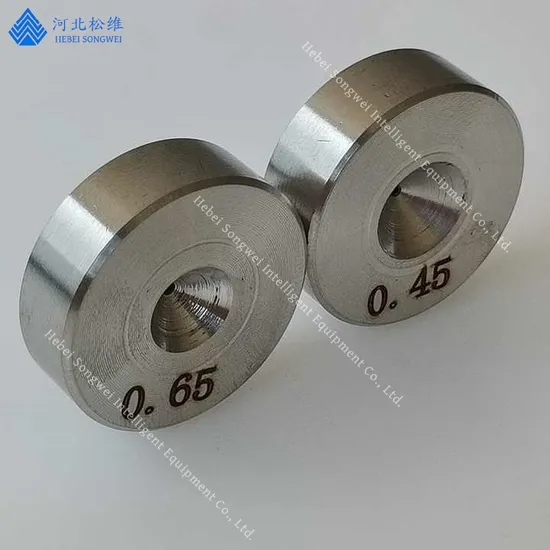

Detailed Photos
Product Usage
Wire and cable, aluminum wire, ladle steel wire, ladle copper wire, steel wire rope, high carbon steel wire, stainless steel wire, nickel wire, chrome wire, copper clad steel wire, cutting wire, steel cord, welding wire, copper pipe , stainless steel tube, etc.
Our Advantages
1. 100% virgin raw material;2. High hardness, excellent wear-resistance;3. High elastic modulus and compressive strength;4. Stable chemical properties;5. Blanks, precision grinded and polished;6. Various sizes and grades;7. Strict products quality inspection.
Packaging & Shipping
Package.
The main machinery is packed with plastic film and fixed in the container with steel wire. Small mechanical parts are packed in wooden cases.Shipment.We can book containers for customers according to the mechanical size. If we need LCL, we can arrange to pack and send them to the designated place.
Customer and Market
Friends from all over the world. All key spare parts of the company are independently produced by us to control their processing accuracy and quality, thereby extending the service life of the machinery.The company has taken the lead in passing the ISO9001:2008 quality system certification and the EU CE product safety certification in the same industry, providing reliable assurance for excellent product quality.
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment. Company Profile
