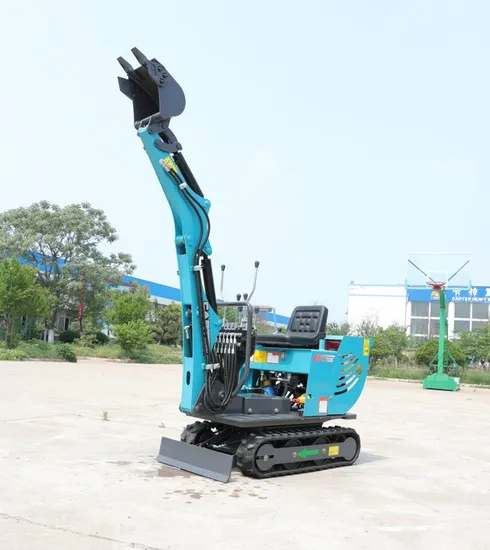

0.7 Tons Mini Crawler Hydraulic Backhoe Excavtor
Basic Info.
Model NO.
CT06
Type
Crawler Excavator
Usage
Family, Garden
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.016
Size
Mini
Certification
CE, ISO9001: 2000
Condition
New
Trademark
Carter
Origin
China
HS Code
8429521200
Production Capacity
5000
Product Description
| Model | CT06 (Euro 5) |
| Operating weight (ton) | 0.7 |
| Bucket capacity (cbm) | 0.016 |
| Engine model | 192F |
| Rated power (kw/r/min) | 7.0/3000 |
| Hydraulic pump model | C108-51A-01000A0 |
| Max.flow (L/min) | 18 |
| Working pressure (Mpa) | 16 |
| Control valve model | DL80 |
| Swing motor model | C108-57A-01000A0 |
| Travel motor model | C106-56A-01000A0 |
| Fuel tank capacity (L) | 5.4 |
| Hydraulic oil tank capacity (L) | 24 |
| Travel speed (km/h) | 1.3 |
| Swing speed (r/min) | 13 |
| Max. climbing degree (%) | 35 |
| Arm digging force | 5.2 |
| Bucket digging force (KN) | 8.4 |
| Average grounding pressure (Kpa) | 26 |
| A-Overall length (mm) | 2725 |
| B-Overall width (mm) | 730 |
| C-Overall height (to top of boom)(mm) | 945 |
| D-Overall height (to top of cab)(mm) | 1280 |
| E-Counterweight ground clearance(mm) | 325 |
| F-Min. ground clearance (mm) | 92 |
| G-Tail swing radius (mm) | 758 |
| H-Track Ground Length (mm) | 875 |
| J-Track length (mm) | 1150 |
| K-Track gauge (mm) | 580 |
| L-Track width (mm) | 730 |
| M-Track shoe width (mm) | 150 |
| N-Turntable width (mm) | 700 |
| O-Max. digging height (mm) | 2512 |
| P-Max. dumping height (mm) | 1613 |
| Q-Max. digging depth (mm) | 1000 |
| R-Max. vertical wall digging depth (mm) | - |
| T-Max. digging reach (mm) | 2900 |
| U-Max. digging reach at ground level (mm) | 2860 |
| V-Min. swing radius (mm) | 1570 |
| X-Distance between center of rotation and tail length (mm) | 758 |
| Y-Track shoe thickness (mm) | - |
| Z-Height of counterweight (mm) | 20 |
| A1-Ground length (in transportion)(mm) | 2325 |
| Arm length (mm) | 696 |
| Boom length (mm) | 1065 |
| Boom deflection angle left/right(°) | - |
| Max.pushing height/depth(mm) | 130/116 |
