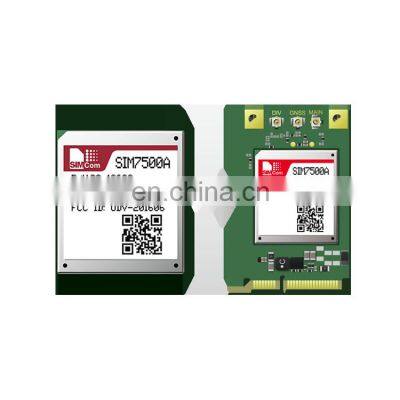

SIM7500E-H-PCIE Multi-band Module (SIM7500X: SIM7500E SIM7500SA/SIM7500A/SIM7500V/SIM7500JE/SIM7500JC/SIM7500SA)

Product Description

Product Description
DescriptionSIMCOM SIM7500X LTE Cat-1 ModuleVariant for EMEA/Korea/ThailandSIM7500E:•LTE-FDD B1/B3/B7/B8/B20•UMTS/HSPA+ B1/B8•GSM/GPRS/EDGE 900/1800MHzVariant for North AmericaSIM7500A:•LTE-FDD B2/B4/B12•UMTS/HSPA+ B2/B5SIM7500V:•LTE-FDD B4/B13Variant for Australia/New Zealand/South AmericaSIM7500SA:•LTE-FDD B1/B3/B5/B7/B8/B28•UMTS/HSPA+ B1/B5Variant for JapanSIM7500JC:•LTE-FDD B1/B18/B19/B26SIM7500JE:•LTE-FDD B1/B3/B8 Specifications for Data transfer•LTE CAT1- Uplink up to 5Mbps- Downlink up to 10Mbps•HSPA+- Uplink up to 5.76 Mbps- Downlink up to 42 Mbps•UMTS- Uplink/Downlink up to 384Kbps•EDGE- Uplink/Downlink up to 236.8Kbps•GPRS- Uplink/Downlink up to 85.6KbpsGeneral features•LGA Package•Control Via AT Commands•Supply voltage range: 3.4V~ 4.2V, 3.8V Typical•Operation temperature: -40℃ to +85℃•Dimension: 24*27*2.75mm•Weight: 4.0g•Bandwidth: 1.4/3/5/10/15/20MHz•3GPP E-UTRA Release 11 Other features•USB Driver for Microsoft Windows2000/XP/Vista/Win7/Win8/Win10•USB Driver for Linux /Android•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0•MBIM to Win8•Firmware update via USB•TCP/ IP/ IPV4/ IPV6/ Multi-PDP/ FTP/ FTPS/ HTTP/ HTTPS/ DNS•SSL3.0/TLS1.0/TLS1.2•DTMF (Sending and Receiving)•Audio Playing•USB Audio and VoLTE•FOTA Interfaces•USB2.0 with High speed up to 480Mbps•UART•GPIO•Antenna: Solder pads for Primary, Rx-diversity andGNSS antennas•(U)SIM card (1.8V/3.0V)•Digital Audio through PCM•ADC•GNSS: GPS/GLONASS/Beidou/Galileo* Approvals•RoHS Compliant•CE (SIM7500E/SIM7500SA)•FCC/PTCRB/AT&T(SIM7500A)•FCC/GCF/Verizon* (SIM7500V)•Jate/Telec/Softbank(SIM7500JE)•Jate/Telec/Docomo* /Kddi* (SIM7500JC)•ACMA (SIM7500SA)*Under Development/TestingWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
