Construction Conveying Pumps Small Hydraulic Trailer Truck Mini Diesel Stationary Piston Concrete Transfer Concrete Pump
Basic Info.
Model NO.
10 Horizontal Concrete Pump
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
7-11m3/H
Feeding Height
Small Concrete Pump Truck
Vibrating Amplitude
Small Diesel Concrete Pump
Certification
CE
Condition
New
Color
Color Can Be Customized
Model
10 Concrete Pump with Diesel Engine
Working Capacity
7-11m3/H
Outlet Pressure
8MPa
Max Granules Diameter
3cm
Power
17.8kw/28HP
Conveying Cylinder Size
40*500mm
Transport Package
Standard
Specification
10 Horizontal Concrete Pump
Trademark
ZHONGMEI
Origin
China
Packaging & Delivery
Package Size
70.00cm * 70.00cm * 70.00cm
Package Gross Weight
59.000kg
Product Description
Hot SalesProduct Description
Introduction of Construction Site Diesel Horizontal Stone Conveying Pumps Hydraulic Concrete Pump Small Concrete Pumping Machine
The construction site fine stone mortar pump is applied in high-rise building ash mortar and fine stone concrete transportation, secondary structure column grouting, reservoir, hydropower station, port, dock, various pressure grouting, foundation treatment, weak foundation, reinforcement grouting, tunnel Backfill grouting anchor support in subway and mine construction. Other descriptions This product adopts hydraulic feeding, and the double-cylinder reciprocating operation of vibrating net filter can completely transport various mortars, fine stone concrete, etc. in building application. This product has large displacement, high pressure, labor saving, flexible movement, etc. Features, is an ideal mortar conveying equipment. The pump is widely used in indoor construction of urban construction projects (such as infusion of structural columns and invisible columns), anchorage grouting, consolidation grouting and backfill grouting works for underground tunnels of urban subway hydropower stations. It can also be used for grouting of anchor piles during slope and soft rock reinforcement.
zmwm21
Product Parameters
Parameters of Construction Site Diesel Horizontal Stone Conveying Pumps Hydraulic Concrete Pump Small Concrete Pumping Machine
| Model: | 10 Concrete Pump with Diesel engine |
| Working capacity: | 7-11m³/H |
| Outlet pressure: | 8Mpa |
| Max Granules diameter: | 3cm |
| Diesel engine: | Changchai |
| Power: | 17.8KW/28HP |
| Conveying cylinder size: | Φ 140*500mm |
| Working horizontal distance: | Max 80m |
| Working vertical Height: | Max 30m |
| Weight: | 850KG |
| Machine Size: | Machine size:2480-1140-1400mm |
| Diameter of steel pipe: | 100MM |

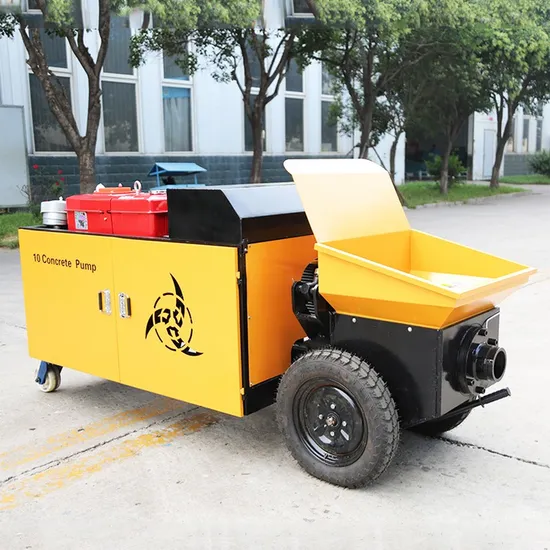

Detailed Photos
Photos of Construction Site Diesel Horizontal Stone Conveying Pumps Hydraulic Concrete Pump Small Concrete Pumping Machine
