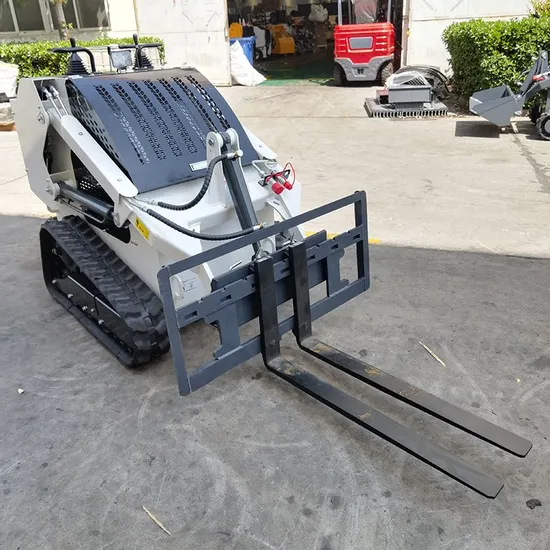

Original Paint Multi-Terrain Loader Small Skid Steer Loader

Product Description

Product Description

Technical Parameter
Model	500	S55	S360	S460	T360	T460	T480	T750
Engine Brand	Bailitong	-	Bailitong	Bailitong	Bailitong	Bailitong	Yangma380	-
Rated Power KW	6.5	36.8KW	10/13.5HP	14-17KW	10/13.5HP	14-17KW	20-25HP	17.8kw
Calibrated speed rpm	3600	-	3000	3600	3000	3600	2500-3000	-
No. Of Cylinders	1	4	1	2	1	2	3	-
Air Intake method	Nature	Nature	Nature	Nature	Nature	Nature	Nature	Nature
Displacement cc	200cc	-	420	639	420	639	639	-
emission standard	-	Guo3	Euro 5-EPA	Euro 5	Euro 5-EPA	Euro 5	EPA	EPA
Rated load Kg	400	890	200	300	200	300	350	-
Maximum load Kg	500	1780	300	400	300	400	480	-
Maximum digging force KN	805Nm	25	3.5	4.50	3.5	4.5	450Nm	4.5
Bucket volume m3	-	0.4	0.12	0.12	0.12	0.12	0.12	0.15
Driving speed (km/h)	1.7/3.5	0-12	0-6	0-6	0-6	0-6	0-6	6
Work three items and s	-	-	9	9	9	9	9	-
Work system pressure bar	20MPa	21	17-21	17-21	17-21	17-21	17-21	25
Fuel tank capacity L	3.1	80	5	10	5	10	13	-
Operating Quality (kg)	-	2880	900	1200	900	1200	1200	1200
Tire model	-	10-10.5	15*72	18*72	15*72	18*72	18*72	-

FAQ
1. Why choose us?
As a manufacturer, is committed to Large machinery such as skid steer loaders, dump trucks, truck mounted excavators, electric forklifts, etc. We also provide power supply and operate various types of inverters and other power conversion equipment.

2. What is the product range of our factory ?
we is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,excavator and related attachments. We can also customize non-standard products according to customer's requirements.

3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment.

4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.

5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products,we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements to
your order.

6. Can we provide OEM service?
We can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

7. After-sales service
We can provide 12 months or 2000 working hours from BL date.
