Prestressed Concrete Pipe Pccp Steel Cylinder Steel Cage Welding Machine

Product Description

Prestressed Concrete Pipe PCCP Steel Cylinder Steel Cage Welding Machine

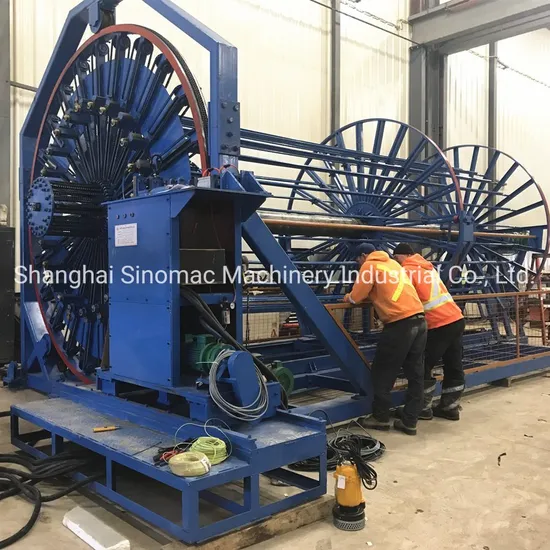

DN800-2400X6250mm jacking pipe cage welding machine installation in Canada
DN800-2400X6250mm jacking pipe cage welding machine export to Canada
Application range: suitable for DN400-3600mm spigot and bell port reinforcement cage and DN400-3600 flat/tongue-groove/steel socket reinforcement cage. The welding cage diameter:DN425-3850mm.Suitable
Diameter: ring and longitudinal wire:4-12mm
Spigot/Bell Angle:0-15 degree
Welding longitudinal reinforcement: 6 or 12 or 18 or 24 or 36 pieces
Welding Length: 0-6000mm
Ring reinforce gap distance:40-110mm
Steel Bar should be low carbon cold wire drawing (meet GB/T343-94 Standard). The steel bar should be clean, no oil and rust.
concrete pipe steel cage welding machine in testing before shipping
Technical Parameter:

Model	SMC---1200	SMC---2400	SMC---3600
Application Range	DN600-1200	DN800-2400	DN2400-3600
Nominal Length(mm)	3000/6000	3000/6000	3000/6000
Number of longitudinal bar(pieces)	6/12	8/12/24	8/12/24
Steel Bar Thickness(mm)	4-12mm
Ring Reinforcement Pitch(mm)	40-110
Socket Angle	0-15degree
Power	Less than 6KW	Less than 10KW	Less than 20KW
Transformer(KVA)	75	100	150
Reference Weight(ton)	About 7.5tons	About 9tons	About 10tons
Dimension(mm)	7700X3410X2475	8580X3990X3231	8755X4650X3660

concrete pipe steel cage welding machine in testing before export shipping
concrete pipe steel cage welding machine:touch screen control system
concrete pipe steel cage welding machine:welding cage
concrete pipe steel cage welding machine export to India customer
concrete pipe steel cage welding machine loading into 40feet container
Our factory is a professional manufacturer of cement products complete sets equipment and molds. It has more than 40 years of experience in research and development, design and manufacture of cement products machinery and equipment. The company has strong technical strength and has a number of national patents. Our factory passed the ISO9001:2008 quality management system certification, and obtained a number of national invention patents. Our main products: DN400-4000mm PCCP Pipe Production Line Concrete Drainage Pipe Production Line Cage Welding Machine Concrete Pipe Mold Our company have sell more than 60sets complete PCCP pipe production line equipment to domestic and foreign market. Now our company's PCCP production line equipment has been exported to Canada, Egypt, India, South America, Africa and so on.
RCP concrete pipe mold/concrete jacking pipe moulds
bm PCCP concrete pipe mold
DN1500X3000mm lengthconcrete jacking pipe moulds export to Canada
The full completely DNt00-4000mm PCCP Pipe Production Line main equipment includes: Spigot Bell Roller, Bell Plate Edger, Spigot/Bell Plate Expander, Spigot/Bell Port Assemble Platform, Steel Cylinder Welding Machine, Steel Cylinder Water Pressure Testing Machine, Concrete Placer, Wire Wrapping Machine, Concrete Spraying Machine, PCCP pipe internal/External Pressure Testing Machine, Concrete Molds etc.
PCCP pipe production line equipment:steel spigot bell ring rolling machine
PCCP pipe production line equipment:steel bell ring edger machine
PCCP pipe production line equipment:steel spigot bell ring expanding machine
PCCP pipe production line equipment:DN600-1600x6000mm steel cylinder welding machine
PCCP pipe production line equipment:DN1600-4000x6000mm steel cylinder welding machine
PCCP pipe production line equipment:concrete pipe mould casting machine
PCCP pipe production line equipment:DN600-1600x6000mm wire wrapping machine
PCCP pipe production line equipment:DN600-1600x6000mm concrete coating machine
PCCP pipe production line equipment:concrete pipe mold casting and demould
PCCP pipe production line equipment:final pccp concrete pipe
Welcome all the customers to visit our factory and cements products production line working site.
