Slant Bed Pricision CNC Turning Lathe

Product Description

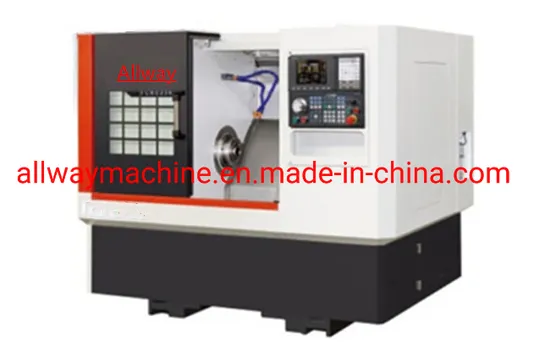

CLK6340 SLANT BED CNC LATHE MACHINE
1. CLK6340 SLANT BED CNC LATHE MACHINE SPECIFICATION

	unit	CLK6340
Max. swing over bed	mm	Φ400
Max. swing over cross slide	mm	Φ120
Max. processing length	mm	300
X/Z axis travel	mm	380/350
Spindle unit		170
Spindle nose		A2-5(A2-6 optional)
Spindle bore	mm	56
Spindle drawing pipe diameter	mm	45
Spindle speed	rpm	3500
Chuck size	inch	6/8
Spindle motor	kw	5.5
X/Z axis motor torque	NM	6/6
X/Z feed motor power	kw	1.5
X/Z position accuracy	mm	0.016/0.016
X/Z repeatability	mm	0.006/0.006
X/Z rapid feed speed	m/min	18/18
Guide type		Taiwan linear guide way
Total power capacity	kva	9/11
Cutting tool shape size	mm	20*20
Machine dimension (L*W*H)	mm	2500*1340*1710
N.W.	KG	2500

2. CLK6340 SLANT BED CNC LATHE MACHINE FEATURES
45 degrees slant bed CNC lathe
Higher accuracy Taiwan linear
Chip conveying capacity is large and convenient, customer could choose
chip conveying in the front or in the back
Screw pre-stretching structure
Gang type tool post
3. CLK6340 SLANT BED CNC LATHE USAGE
This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other
industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could
also turn various metric and inch threads etc, with higher efficiency and higher precision in bulk.
4. CLK6340 SLANT BED CNC LATHE STANDARD ACCESSORIES
GSK980TDC or Siemens 808D NC system
servo motor 5.5/7.5 kw
4 station gang type tool post
6" domestic thru-hole type hydraulic chuck
5. CLK6340 SLANT BED CNC LATHE OPTIONAL ACCESSORIES
NC System: KND1000Ti, Fanuc Oi Mate-T
Main Motor: Servo 7.5 KW
Inverter 11 KW
Turret: 4 station electric turret , 6 station electric turret
Chuck: 6″Non-through hole hydraulic chuck
8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Other optional item: Driving tool turret, automatic feeding device and manipulator.
