Pnmf Series High Speed Grinding Disc PE HDPE Plastic Milling Pulverizing Machine

Product Description

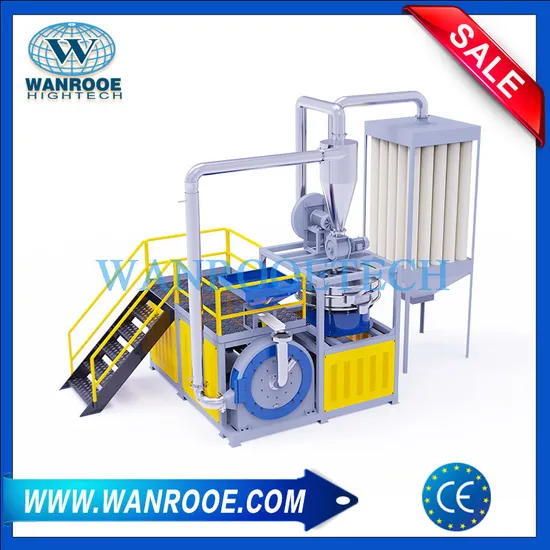

PNMF Series High-Speed Grinding Disc PE HDPE Plastic Milling Pulverizing Machine
General description:
The disc grinding machine pulverizer machine of the PNMF series are available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium-hard, impact resistant and friable materials. The material to be pulverized is introduced through the center of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one-piece grinding discs or grinding segments.
Applications:
One of the main fields of use for the PNMF plastic milling machine is the pulverization of PVC regrind in pipe and profile recycling. Working in line with a shredder and granulator to have a balanced and efficient system to handle in house production waste. Another application is the grinding of PE for Rotomolding applications, here the PM Pulverizer is used in the production process to create the powder needed in the process. In this process, a screening machine is necessary to ensure the right output size, distribution, and flow properties of the ground material.
Technical Features:
1. The new disc design is of high quality, strong resistance and the life of this grinding disc is double the ordinary ones.
2. The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor, to ensure an efficient grinding crash, which greatly saves the time of machine operation and engineering control.
3. Easy installation and maintenance, just open the door to clean up.
4. The whole milling process is sealed, without dust leakage.
5. Full automatic design, automatically feeding, discharging, and sorting.
6. Grinding gap adjustment is simple, just use the feeler gauge, and adjust bolts can be fine-tuning.
7. The mill uses the water and wind double cooling system.
8. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Advantages:
Simple adjustment of cutting gap
Choice of discs or segments
Low drive power - High throughput
Innovative efficient design
Wide range of accessories
Easy temperature control
Specifications:

Model	PNMF-300	PNMF-400	PNMF-500	PNMF-600	PNMF-800
Disc Diameter(mm)	300mm	400mm	500mm	600mm	800mm
Dimension L*W*H(mm)	3700*1500*3700	3800*1600*3800	3900*1700*3900	4000*1800*4000	4300*1900*4300
Main Motor(kw)	11-15	22-30	30-37	45-55	75-90
Air Blower(kw)	3	4	5.5	5.5kw	7.5
Vibrating Motor (kw)	0.55	0.55	0.75	1.1	1.1
Air Lock Motor (kw)	0.75	0.75	0.75	0.75	0.75
Capacity (kg/h)	30-50	50-120	120-200	200-350	400-600

Factory
Delivery
Customer Feedback:
Our Service
1. One year guarantee for whole machine
2. 24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
