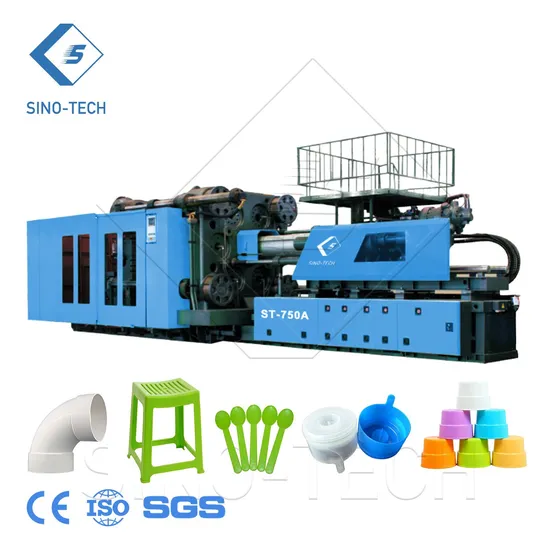

PVC PPR UPVC Pipe Fitting Plastic Injection Molding Machine

Product Description

PVC PPR UPVC Pipe Fitting Plastic Injection Molding Machine
Product Description
SINO-TECH ST-1600JSell injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-1600JSell with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features
1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

Item		1600JSell
Screw diameter	mm	125	135	145
Theoretical shot volume	cm³	7915	9232	10651
Shot weight (PS)	g	7124	8309	9586
Length/Diameter ratio	L/D	23.0	21.1	19.7
Injection pressure(high pressure and low speed)	MPa	224	192	166
Injection pressure(low pressure and high speed	MPa	174	149	129
Injection rate(high pressure and low speed)	cm³/sec	1074	1253	1445
Injection rate(low pressure and high speed)	cm³/sec	1386	1617	1865
Plasticizing capacity (PS)	g/s	161	199	236
Injection stroke	mm	645
Screw speed	rpm	110
Injection unit force	Ton	29.5
Carriage stroke	mm	1050
Clamping force	Ton	1600
Opening force	Ton	166.5
Opening force	Ton	3250
Max. daylight	mm	1700-2550
Clamping stroke	mm	1560*1410
Distance btwn. Tie bars	mm	1090*990
Min mould dimension	mm	700-1550
Mould thickness range	mm	33
Ejector force	Ton	36
Ejector stroke	mm	350
No. of ejector pins	unit	29
Dry Cycle(Euromap 6)	S	7.5
Major motor	kW	143.5
System pressure	MPa	17.5,21.3
No. of heater zones	unit	5+1
Heater input power	kW	92
Ultimate capacity	kw	236.5
Current	A	287.5
Net weight	Ton	95
Oil filling capacity	L	2600

Detailed Photos
Application
Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
