Strong Anchor 3/8*12, 3/8*14 Cut Anchor

Product Description

Product Description

Product Name	Cut Anchor M6-M16
Material	Carbon steel
Size	M6-M16
Surface	Bright
Packaging Details	Cartons + Plywood cases Also can be packed as clients' requirements.
Delivery	Within 15 days
OEM/ODM	Available
Sample	Available, 3-5 days after receiving payment

Cut anchors are an improved expansion anchor with internal thread and a plug, and is the most popular anchor.
Anchor can be installed with hex bolt, stud and hookbolt, etc. After installation, concrete will not be effected in appearance as a rise on the surface.
The test values listed beneath were obtained using 200-250 kgs/cm2concrete(no aggregate). A safe working load should not exceed 25% of stated values.

Cut Anchors Size (A)	Anchor DIA.(B)	Anchor Length (C)	Thread Length (D)	Bolt Thread Fit Length	Drill DIA (mm)	Pull out Load (Kgs)
M6 W1/4	11.0 (10.5)	30	9	8	11.1	980
M8 W5/16	12.0	35	12	10	12.1	1500
M10 W3/8	14.0	40	14	12	14.1	2100
M12 W1/2	17.5	52	20	16	17.6	3200
M16 W5/8	21.4	63	24	20	21.6	4300
M20 W3/4	25.4	83	31	25	25.6	5600
M22 W7/8	28.5	93	36	30	29.0	7000

Metric / inch size available

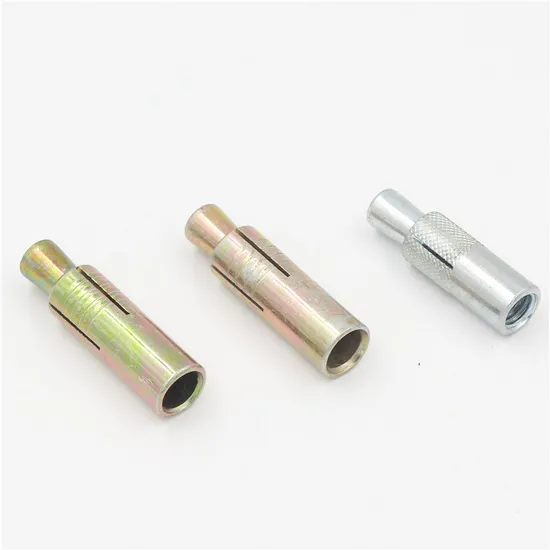

Detailed Photos
