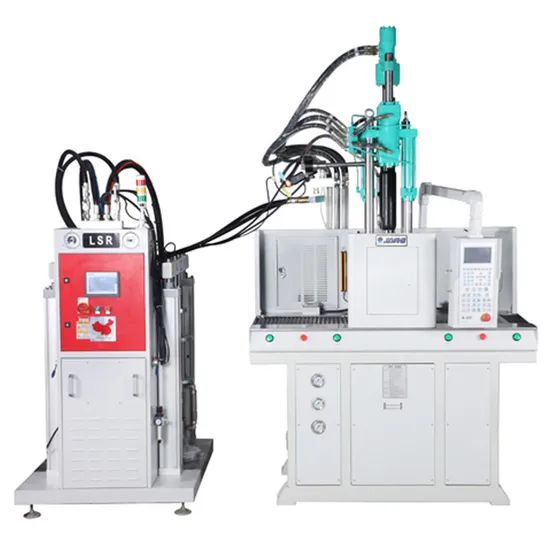

High Quality Liquid Silicone Rubber Injection Moulding Machine with Factory Price

Product Description

Product Overview
1.Including German "2KM" (200L) liquid state silicone gel feeding main engine; 2.Multi section type precision mold electric temperature control;
3.Liquid silicone rubber special oil water cooled closed nozzle;
4.Liquid silicone rubber special material pipe group;
5.Thermal cold plate;
6.Insulating glass plate;
7.Double sliding table design(one upper mold and two bottom molds),it is more convenient to take out and put something into the mold.It will not waste the stop time of Liquid silicone rubber thermosetting.When the one bottom mold is in molding,the operator could do the preparation on other bottom mold.This will greatly increase the production efficiency;
8.Special feeding injection design will make the measurements more accurate;
9.Equipped with adjustable vacuum device will prevent the product of bubbles.
PRODUCT SPECIFICATIONS

Model		Unit	JY-550ST-DM-LSR
Injection Unit	Screw Diameter	mm	28	36
	Theoretical Injection Volume	cm3	86	142.4
	Injection Weight(LSR)	g(oz)	103(3.6)	170.8(6.0)
	Max.Injection Pressure	Mpa(kgf/cm2)	196(2000)	118.6(1210)
	Injection Rate	cm3/s	72.6	120
	Injection Speed	mm/s	118
	Injection Stroke	mm	140
	Screw Speed Rotation	r.p.m	0-200
	Nozzle Out From Platens	mm	≥45
Clamping Unit	Clamping Force	KN(tf)	539(55)
	Clamping Stroke	mm	200
	Min.Mold Thickness	mm	180/240
	Max.Opening	mm	380/440
	Distance Between Tie Bars(L*W)	mm	470*280
	Max.Mould Size(L*W)	mm	425*425
	Platen Size(L*W)	mm	930*450
	Ejector Distance	mm	100
	Ejector Force	KN(tf)	26.5(2.7)
Others	System Pressure	Mpa(kgf/cm2)	13.7(140)
	Oil Tank Capacity	L	200
	Motor Power	KW(HP)	7.5(10)
	Heater Power	KW	5.3
	Machine Dimensions(L*W)	m	1.86*1.7
	Machine Dimensions(H)	m	2.6
	Machine Weight	tf	2.1

PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
JIEYANG has sold machines to many countries all over the world.We could provide 7*24 hours online service and life-long after-sales services.Clients not only our clients,but also our friends.We always give our clients best friends service. This is JIEYANG's Mission and Vision.
JIEYANG has after sales office in Vietnam.
SIMILAR PRODUCTS
Machine Production Process
Company Profile
FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke),life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or
Changping Railway(Bus) station.
Q5: Why choose Dongguan Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards.We will devote every efforts to do the best level machine and service.
