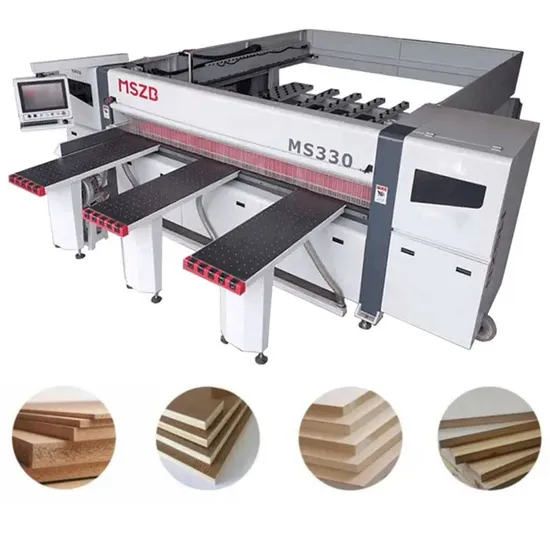

Woodworking 3800mm High Precision Full Automatic Horizontal MDF Plywood Boards Cutting CNC Computer Beam Saw Machine

Product Description

Woodworking 3800mm High Precision Full Automatic Horizontal MDF Plywood Boards Cutting CNC Computer Beam Saw machineProduct Description

model	MS330
max working length	3300mm
max working thickness	85mm
main saw size	305*30mm
scoring saw size	180mm
main saw speed	9000r/min
total power	20.9kw
main saw blade tiliting angle	90degree 45degree
weight	5000kg
overall dimensions	5500*5500*1850mm

Features 1,The sawing effect is good: saw the end of the flat, not collapse, continuous layer, saw the structure is reasonable, all accessories are machine processing, sawing precision protection, saw the host mature, stable.
2,The sawing speed: multi-board at the same time sawing, saw the speed of up to 80M / min, retreat speed 120M / min, closed-loop control system, saw the car at the same time, the robot has been sent to the board, Back and forth movement to ensure the efficiency of sawing.
3,The sawing high precision: the most advanced and stable Japan Panasonic (Panasonic) servo system, the only one with electronic scale automatic alignment, positioning accuracy guaranteed at ± 0.02mm, the servo system response speed is general electronic saw 1.5 times the efficiency.
4,The provincial labor: the machine is simple, ordinary workers can operate, save a year to save the cost of master 200,000.
5,The long life: the body structure is solid, stable, all imported electrical, high hardness rails, not sticky gray, durable, wear-resistant, do not transfer machine.
6,Dust effect is good: pressure beam before and after the use of dust-proof facilities, saw the operation of sawdust is not flying, up and down there are vacuum facilities, so that the workshop environment is more clean.
7,Simple maintenance: the machine mature and stable, for saw blade, change belt and other simple maintenance in the installation and commissioning of the church users.
8,The advantages of circular guide: high hardness, wear, not sticky gray, not stuck, the country, inside and outside the electronic saw manufacturers of common choice.
9,The most cost-effective: good product quality - good cutting effect - high efficiency sawing - 24 hours service - the whole industry price the most.
Detailed Pictures
Packaging & Shipping
Company Information
FAQ
1,Can you offer good price with fine quality also? Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
2,We will be protetcted if we are paying for orders?
Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years made in china trade assurance you could rely on,you will be protected very well.
3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.
4,What's your production time? we want faster shipping time also.
Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
