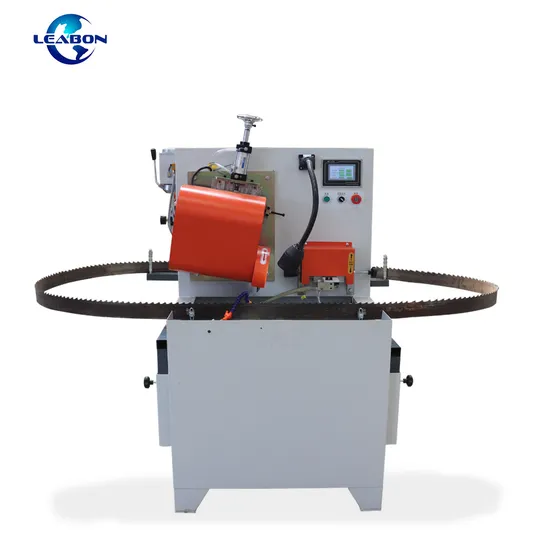

Automatic Band Saw Blade Grinding Machine Sawbalde Sharpening Machine Sawtooth Grinder

Product Description

Automatic Band Saw Blade Grinding Machine Sawbalde Sharpening Machine Sawtooth Grinder
Product Description
odel
1. The machine is mainly driven by cam mechanism with stable performance. The main components are casted to suppress vibration during operation. 2. Adopt rack inclined bed, easy to clean. Simple operation, low maintenance cost and small footprint. 3. After the knife setting is completed, the grinding is completed with one key, which reduces the labor intensity of workers. 4. The electric control box is simple and convenient for data setting.
Product Parameters

Model	MR150
Wheel Diameter	150mm
Grinding Width	30-150mm
Tooth Pitch	10-35mm
Grinding Speed	50 teeth/min
Dimensions	950*850*1360mm
Packing Size	1000*900*1400mm
Machine Weight/Packing Weight	150kg/165KG

Detailed Photos
Other Model Automatic Band Saw Blade Sharpener

Model	MR1111	MR1115	MR1118
Grind Blade Width Range	30-80mm	30-125mm	60-150mm
Sand Wheel Diameter	150mm	250mm	250mm
Grind Teeth Pitch Range	8-20mm	10-30mm	10-40mm
Grinding Speed	50tooth/min	50tooth/min	50tooth/min
Overall Size	830*560*530mm	950*650*600mm	900*750*700mm
Weight	52kg	100kg	200kg

Model	MR1106 Blade Sharpener	MR1103 Bi-Metal Band Saw Blade Sharpener
Grind Blade Width Range	15-60mm	5-60mm
Grind Teeth Pitch Range	3-25mm	2-30mm
Grinding Speed	10-180 tooth/min	40-60 tooth/min
Sand Wheel Power	550W 50HZ 220V	250W 50HZ 220V
Sand Wheel Speed	2800r/m	2800r/m
Weight	100kg	30kg

Packaging & Shipping
Company Profile

Pls click "Send" ask for more information and EXW price if you are interested in our Automatic Band Saw Blade Sharpener.
