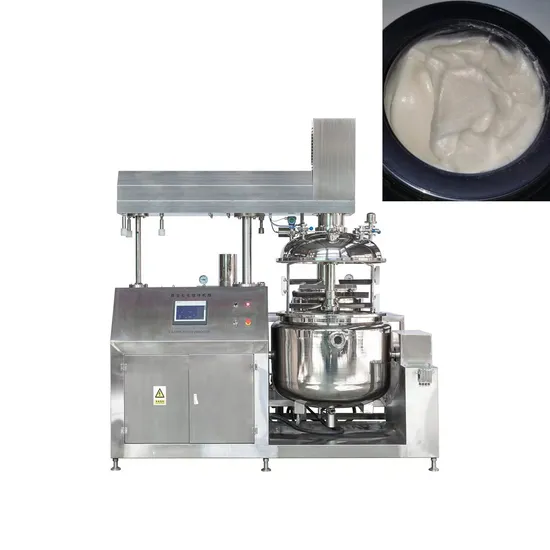

Hand Cream Making Machine Electric Heating Vacuum Homogenizing Emulsifier Gel Mixing Machine

Product Description

Product Description Purpose: This equipment is suitable for emulsifying cream or cosmetic product in pharmaceutical , cosmetics, foodstuff and chemical industry.
Summarize: The Vacuum emulsifier has done the improvement bases on the technology which imported from German and it is especially useful in cosmetics and ointment product Industry. This equipment is mainly consist of emulsified tank , tank to storage oil based material, tank to storage water based material, vacuum system, hydraulic system, and electric controller. This equipment has following features: easy operation, compact structure, stable performance, good homogenization effect, high production benefit, convenient cleaning and maintenance , high automatic control .

Features The material of contacted part is SUS316L stainless steel, inside and outside of the equipment are with mirror polishing and get to GMP standard. All pipelines and parameter are controlled automatically. And the electric appliance which are imported from foreign country ,like Siemens . Emulsifying tank is with CIP cleaning system, it make the cleaning to be easy and effective. Emulsifying tank adopts tertiary agitating system, and during the emulsification ,the whole processing is under a vacuum environment, so it not only can eliminate spume which created in the emulsification processing ,but also can avoid the unnecessary pollution. The homogenizer adopts the most advanced technology, it can get a ideal emulsifying effect. The speed of high emulsification is 0-3500r/min, and the speed of low mixing is 0-65r/min. Product Parameters

Technical Parameters
Main Mixing Tank	Total Volume:1300L, Working Volume: 1000L
	Pressure:-0.1Mpa in pot, 0.1Mpa in Jacket
	Temperature:≤130ºC
Pretreatment Pot	Oil pot volume:400L, Water pot volume: 750L
	Working Pressure: 0.1Mpa
	Temperature: ≤130ºC
	Agitator: Turbine, Power:2.2kw
Main Mixer	Speed:0-60 rpm, Power:7.5kw
High shear mixer	Speed:0-3500 rpm, Power:15kw, vacuum degree:- 0.09 Mpa
Vacuum Pump	Model: 2B V521
	Power 7.5Kw

Detailed Photos Touch screen Electrical Cabinet
Frame Type Mixing Drum High speed emulsifying homogenizer head Prepare tank(oil tank and water tank) Main tank Sample display
