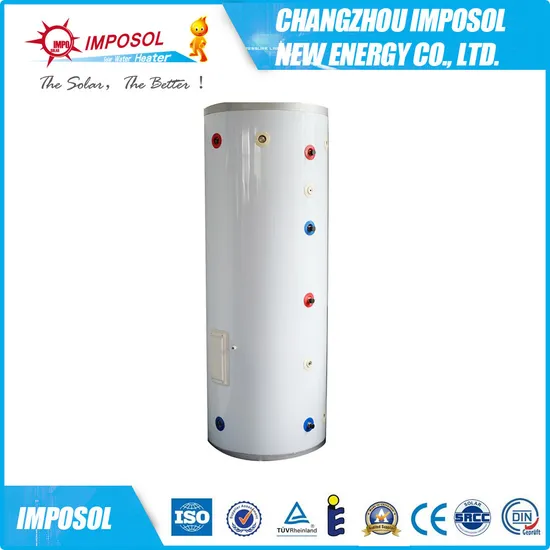

Split Good Stability Pressure Solar Water Storage Tank with Single Copper Coil

Product Description

Solar Storage Water Tank Without Coil Heat Exchanger ( Open Loop & Active & Direct Tank )
Model	IPWT100(0)	IPWT150(0)	IPWT200(0)	IPWT250(0)	IPWT300(0)	IPWT400(0)	IPWT500(0)
Water Capacity	100L	150L	200L	250L	300L	400L	500L
Inner Tank Diameter (mm)	Φ380	Φ380	Φ440	φ480	φ480	φ600	φ600
Outer Tank Diameter (mm)	φ480	φ480	φ550	φ570	φ570	φ700	φ700
Inner Material&Thickness	SUS 304 -1.2mm		SUS 304 -1.5mm			SUS 304 -2.0mm
Outer Material&Thickness	Painted Galvanized Steel - 0.5 mm thickness
Insulation Layer Material	High-density Polyurethane
Insulation Layer Thickness	50mm	50mm	50mm	45mm	45mm	50mm	50mm
Water Inlet&Outlet Size	3/4'				3/4' or 1 '
Accessories	Electrical heating, Magnesium rods, P/T Valve , Drain valve, Check valve
Tank Dimensions ( cm )	48*104	48*147	540*150	57*156	57*1840	70*158	70*193
Packing Dimensions ( cm )	52*52*11	52*52*153	58*58*155	61*61*162	61*61*190	74*74*164	74*74*199
Solar Storage Water Tank With One Coil Heat Exchanger ( Closed Loop & Active & Indirect Tank )
Model	IPWT100(1)	IPWT150(1)	IPWT200(1)	IPWT250(1)	IPWT300(1)	IPWT 400(1)	IPWT 500(1)
Water Capacity	100L	150L	200L	250L	300L	400L	500L
Inner Tank Diameter( mm )	Φ380	Φ380	Φ440	φ480	φ480	φ600	φ600
Outer Tank Diameter( mm )	φ480	φ480	φ550	φ570	φ570	φ700	φ700
Inner Material&Thickness	SUS 304 -1.2mm		SUS 304 -1.5mm			SUS 304 -2.0mm
Outer Material&Thickness	Painted Galvanized Steel - 0.5 mm thickness
Insulation Layer Material	High-density Polyurethane
Insulation Layer Thickness	50mm	50mm	50mm	45mm	45mm	50mm	50mm
Water Inlet&Outlet Size	3/4'				3/4' or 1 '
Coil Material	SUS 316 Stainless Steel
BottomCoil	0.6m2			0.7m2		0.8m2
Coil Inlet&Outlet Size	1/2 '
Accessories	Electrical heating, Magnesium rods, P/T Valve , Drain valve, Check valve
Tank Dimensions( cm )	48*104	48*147	540*150	57*156	57*1840	70*158	70*193
Packing Dimensions( cm )	52*52*11	52*52*153	58*58*155	61*61*162	61*61*190	74*74*164	74*74*199
Solar Storage Water Tank With Double Coils Heat Exchanger ( Closed Loop & Active & Indirect Tank )
Model	IPWT100(2)	IPWT150(2)	IPWT 200(2)	IPWT250(2)	IPWT300(2)	IPWT400(2)	IPWT 500(2)
Water Capacity	100L	200L	200L	250L	300L	400L	500L
Inner Tank Diameter ( mm )	NONE		Φ440	φ480	φ480	φ600	φ600
Outer Tank Diameter (mm )			φ550	φ570	φ570	φ700	φ700
Inner Material&Thickness			SUS 304 -1.5mm			SUS 304 -2.0mm
Outer Material&Thickness			Painted Galvanized Steel - 0.5 mm thickness
Insulation Layer Material			High-density Polyurethane
Insulation Layer Thickness			50mm	45mm	45mm	50mm	50mm
Water Inlet&Outlet Size			3/4'		3/4' or 1 '
Coil Material			SUS 316 Stainless Steel
Upper Coil			0.4m2	0.4m2		0.5m2
BottomCoil			0.6m2	0.7m2		0.8m2
Coil Inlet&Outlet Size			1/2 '
Accessories			Electrical heating, Magnesium rods, P/T Valve , Drain valve, Check valve
Tank Dimensions( cm )			540*150	57*156	57*1840	70*158	70*193
Packing Dimensions( cm )			58*58*155	61*61*162	61*61*190	74*74*164	74*74*199

Automatic Workshop
1.Modern workshops have advanced production lines and professional knowledge of assembly.
2.Flow card to record each details carefully.
3.100% self-inspection before packing.
Advantages
1.Economic and practical products from Sunlight , reliable performance.
2.Choose Sunlight, choose a rest assured.
3.Advanced production lines and test rooms.
4.Perfect QCP.(Quality control plans)
Application: car, truck, bus, cooler room
Packaging & Shipping
Strong packaging to ensure safety during transportation.
Export wooden box packaging for products.
FAQ
Q1.Can I have a sample for testing?
A: Yes,of courses we can supply the sample for you !
Q2.Can I add my logo on the water tank?
A:Yes,OEM and ODM are available for us.But you should send us LOGO image.
Q3. How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.If it is the men-made problems,we also send the spare parts,but you should pay.
Q4.Do you have inspection before delivery?
A:100% self-inspection before packing
Q5.Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.Here is our factory address:No. 5 Shengda Road, Konggang Industrial Park ,Luoxi Town, Xinbei District, Changzhou City, Jiangsu Province China
