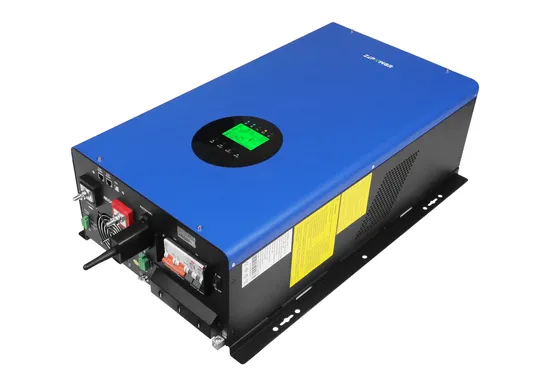

Pure Sine Wave MPPT Solar Inverter Hybrid Charger Inverter 8kw 10kw 12kw

Product Description

8000W 10Kw 12kw MPPT Scc Pure Sine Wave Solar Inverter Hybrid Charger Inverter
Key Features:
♦ GS Series AC/Solar charging Off grid Hybrid Inverter.
♦ LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design.
♦ Built-in 80A 160A optional MPPT solar charger controller.
♦ LCD shows the solar capacity.
♦ 5 stages adjustable AC charging current. AC charging also can be closed.
♦ AC/DC priority modes can be set.
♦ Generator restart signal. (Dry contact)
♦ 3 times peak power. Strong loading capacity.
♦ Overload, output short-circuit protection.
♦ High PV voltagre 250W
♦ Wifi optional
Spefication:

Model Parameters		GS8KW	GS10KW	GS12KW
AC Input	Nominal Power	8KW	10KW	12KW
	Input Voltage Waveform	sinusoidal(utility or generator)
	Nominal input Voltage	230VAC
	Low Line Disconnect	184Vac±4%(Normal) or 135Vac±4%(Wide) for 230V
	Low Line Re-connect	194Vac±4%(Normal) or 145Vac±4%(Wide) for 230V
	High Line Disconnect	263Vac±4%(Normal) or 263Vac±4%(Wide) for 230V
	Max AC input Voltage	230V for Max270V
	Frequency	50Hz:41-54Hz, 60Hz:51-64Hz
AC output	Output Voltage Waveform	Sine wave
	Power Factor	0.9~1.0
	Nominal Output Voltage(V)	LV:120Vac ±10%rms, HV:230Vac ±10%rms
	Nominal Output Frequency (Hz)	50Hz ± 0.3Hz, 60Hz ± 0.3Hz
Solar charger	Rated Charge Current	60A
	PV Input Voltage range	60-110VDC for 48V
	Max.PV open circuit array voltage	48V for 110Vdc
	Charger mode	MPPT
	PV Low Voltage Re-connect	PV≥Bat.V+3V
	PV Low Voltage Disconnect	PV<=Bat.V
	Efficiency	≥97%
AC Charger	Nominal Charger Current	20A/35A/50A/70A/90A( 5 stages adjustable charging current)
	Over charge Protection	Bat.V≥31.0VDC for 24V battery, Bat.V≥62.0VDC for 48V battery beeps 0.5s every 1s & fault after 60s
Charger	Nominal Charger Current	20A/35A/50A/70A/90A(According to the inverter model) adjustable 5 stages charging current
	Over charge Protection	Bat.V≥15.5VDC/31.0VDC/62.0VDC, beeps 0.5s every 1s & fault after 60s
Efficiency	Efficiency(Battery Mode)	≥87%
	Efficiency (Line Mode)	>98%
Battery Voltage	Nominal DC input Voltage	48VDC
	Low Battery Alarm	42VDC±1.2VDC for 48VDC
	Low DC input shut & down	40VDC±1.2VDC for 48VDC
	High DC input Alarm & Fault	64VDC±1.2VDC for 48VDC
Transfer Time	AC tO DC	20ms(max)
	DC tO AC	15ms(max)
System Parameter	Over-Load Protection	110%the output,load>150%,beeps 0.5s every 1s,and Fault after 20s
	Output Short Circuit Protection	Current limit (Fault after 10s)
	Surge Rating(10s)	1:3(VA)
	Power Saver	Load≤25W(Enabled on "P/S auto"Setting of Remote control)
	Protections	Low battery, over charging, over load, over temp
	Indicators	LED+LCD Display
General Specifications	Operating Temperature Range	0ºC~40ºC
	Storage Temperature	-15ºC~60ºC
	Operation humidity	5% to 95%(non-condensing)
	Audible Noise	60dB max
	cooling	Forced air, variable speed fan
	Dimension(L*W*H)	627*416*204mm
	Net Weight(kg)	52.5	58.5	66.5

Detailed Images
Company Profile
Packing and Shipping
FAQ:
Q 1. What's the payment terms and payment method ?
A. We accept L/C, T/T, Credit Card, Western Union, Money Gram, etc.
Usually 30% deposit, 70% before shipment.
Q 2. How's the delivery time ?
A. It usually takes about 3-10 days after payment arrived.
Q 3. How about package ?
A. For the small UPS and the inverters less than 30kg will be packed in foams and cartons. For the big UPS and inverters heavier than 30kg will be packed in pallets or wood boxes .
Q 4. Would you accept to print our logo and design ?
A. Yes, we can print your logo on the inverters, UPS and cartons. Also welcomed your own design of these inverters and UPS.
Q 5. What kind of certificates you have ?
A. For company have ISO9001, ISO14001, TUV and SGS factory certification.
For UPS and power inverters, we have CE,IEC, KC and ETL, etc.
Q6. When the product have problem, how to solve it ?
A. We have a professional after-sales team, in case of any problems, first contact us to help you solve, we have a 24 months warranty and lifetime technical support. We will track product usage until you are satisfied.
