Automatic Cooler with Air Cooling Famous in Chinese

Product Description

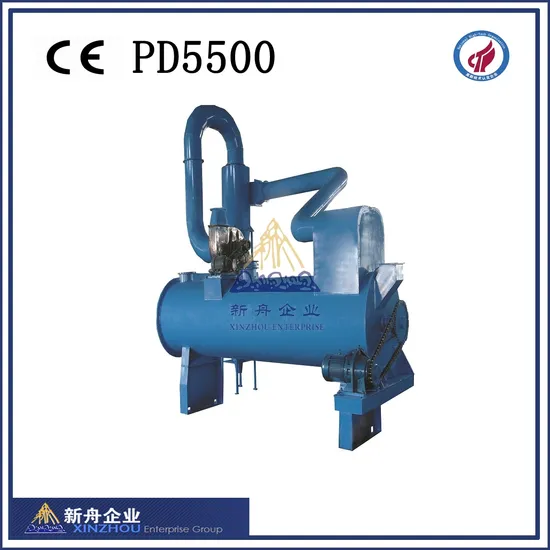

Cooler
1.1 working principle
The fishmeal enters into the machine from the feeding inlet, and fully contacts with the air, in the end reaches the temperature and discharges from the outlet. During the conveying process, the fishmeal is in contact with the wall of the machine and the heat is transferred to the wall , the cooling water enters into the cooling layer from the inlet pipeline, then the cooling water takes away the heat in order to reduce the temperature, so achieves the effect. The hot air is discharged from the collecting channel and entered into the cyclone dust collector, the hot air is discharged to the atmosphere through the air pump, little dust is kept in the container. The hot water is out flowed from the outlet pipeline and discharged directly.1.2 characteristic of the cooler
a.Adopted the air cooling, if the temperature is too high, the machine can use the water cooling in order to get the perfect cooling effect.
b. Automatically and continuous uniformity
c. Connected with the chain, good effect and steady moving
d. The shell is sealed in order to keep the clear environment.
e. During the processing, the fishmeal is smashed totally and fully contact with the air.
Steam Dried Fishmeal Process is proven to be the most efficient way to produce fishmeal and fish oil. It was first introduced in late 80s by Xinzhou Fishmeal Machinery, with 30 year's of experience, Xinzhou has developed into an expertise fishmeal manufacturer and ranked #1 in China
Raw material is cooked, pressed, and dried. Then the fish liquid is purified in a tricanter and centrifuge to make feed grade fish oil with less than1% moist. The whole process is automatically operated.
Advantages
(1). National famous brand, well trusted by thousans of clients along the globe.
(2). The de-fat steam dried fish meal is of higher protein content, longer storage time.
(3). Lower energy consumption.( About 60% as before)
(4). The byproduct fish oil also has very good market value
(5). Automatic processing system needs less worker.
(6). The evaporator makes higher protein content in fish meal and saves energy
(7). The deodorizer makes less pollution.
The whole plant contains screw conveyor, cooker, press, trcanter, dryer, centrifuge, evaporator, boiler, electrical controller and other accessories.
