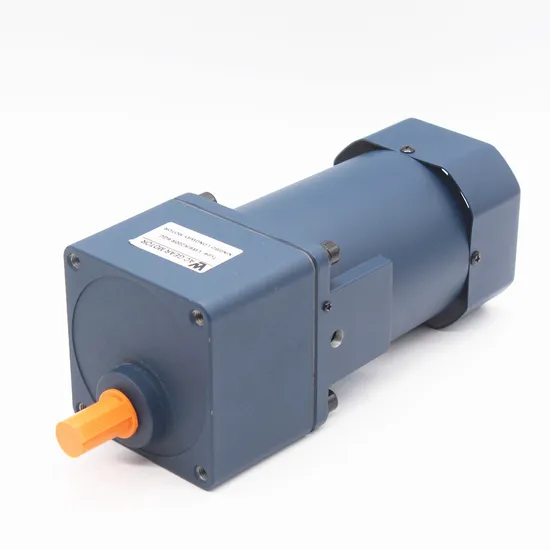

AC Gear Motor for Transportation
Basic Info.
Model NO.
5IK40
Number of Stator
Single-Phase
Function
Driving
Casing Protection
Closed Type
Number of Poles
2
Starting Mode
Variable Frequency Starting
Certification
Ce,RoHS
Brand
Derry
Name
AC Gear Motor for Transportation
Phase
Signal Phase
Volage
110V 220V 380V
Shaft
12mm
Dia.
90mm
Transport Package
Carton/Plt
Specification
CE ROSH
Trademark
Derry
Origin
Ningbo
HS Code
8501400000
Production Capacity
60, 000PCS/Month
Product Description
1.Product DescriptionAC gear motor
Typical Applications:Industrial equipment, Agricultural
machinery, Entertainment equipment, Transportation
Motor specification:
| Model of Motor | Output | Voltage | Frequency | Poles | Duty | Rated | Starting Torque | /Capacitor/Ve | |||||
| Speed | Current | Torque | |||||||||||
| W | V | HZ | P | rpm | A | N.m | kg.cm | N.m | kg.cm | μf/VAC | |||
| 5IK40A-A | 5IK40GN-A | 40 | 1ph110 | 50 | 4 | CONT | 1350 | 0.64 | 0.29 | 2.85 | 0.25 | 2.50 | 10.0/250 |
| 5IK40A-C | 5IK40GN-C | 40 | 1ph220 | 50 | 4 | CONT | 1350 | 0.29 | 0.29 | 2.85 | 0.28 | 2.50 | 2.5/500 |
| 5IK40A-S | 5IK40GN-S | 40 | 3ph220 | 50 | 4 | CONT | 1300 | 0.38 | 0.29 | 2.90 | 1.15 | 11.5 | / |
| 5IK40A-S3 | 5IK40GN-S3 | 40 | 3ph380 | 50 | 4 | CONT | 1300 | 0.22 | 0.29 | 2.90 | 1.15 | 11.5 | / |
| 5IK40A-D | 40 | 1ph220 | 50 | 2 | CONT | 2800 | 0.35 | 0.15 | 1.45 | 0.13 | 1.25 | 3.0/500 | |
| Frequency | Reduction Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | |
| 50HZ | Output Shaft Speed | rpm | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 |
| Allowable Torque | N.m | 0.68 | 0.82 | 1.14 | 1.37 | 1.72 | 2.06 | 2.29 | 2.86 | 3.43 | 4.13 | 4.59 | 5.16 | 6.20 | 7.44 | 8.26 | 9.80 | 9.80 | |
| kg.cm | 6.94 | 8.37 | 11.6 | 14.0 | 17.6 | 21.0 | 23.4 | 29.2 | 35.0 | 42.1 | 46.8 | 52.6 | 63.3 | 75.9 | 84.3 | 100 | 100 | ||
| 60HZ | Output Shaft Speed | rpm | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 |
| Allowable Torque | N.m | 0.58 | 0.70 | 0.97 | 1.16 | 1.45 | 1.74 | 1.93 | 2.41 | 2.90 | 3.48 | 3.87 | 4.36 | 5.23 | 6.28 | 6.97 | 8.72 | 9.46 | |
| kg.cm | 5.92 | 7.14 | 9.90 | 11.8 | 10.8 | 17.7 | 19.7 | 24.6 | 29.6 | 35.5 | 39.5 | 44.5 | 53.4 | 64.1 | 71.1 | 89.0 | 96.5 | ||
| Frequency | Reduction Ratio | 75 | 90 | 100 | 120 | 150 | 180 | 200 | 300 | 500 | |
| 50HZ | Output Shaft Speed | rpm | 20 | 16 | 15 | 12 | 10 | 8 | 7.5 | 5 | 3 |
| Allowable Torque | N.m | 9.80 | 9.80 | 9.80 | 9.80 | 9.80 | 9.80 | 9.80 | 9.80 | 9.80 | |
| kg.cm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| 60HZ | Output Shaft Speed | rpm | 24 | 20 | 18 | 15 | 12 | 10 | 9 | 7.2 | 3.6 |
| Allowable Torque | N.m | 9.80 | 9.80 | 9.80 | 9.80 | 9.80 | 9.80 | 9.80 | 9.80 | 9.80 | |
| kg.cm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
2.Production Flow
3.Company Information In recent ten years, Derry has been dedicated to the manufacture of the motor products and the main products can be classified into the following series, namely DC motor, DC gear motor, AC motor, AC gear motor, Stepper motor, Stepper gear motor, Servo motor and Linear actuator series.
Our motor products are widely applied in the fields of aerospace industry, automotive industry, financial equipment, household appliance, industrial automation and robotics, medical equipment, office equipment, packing machinery and transmission industry, offering customers reliable tailored solutions for driving and controlling.
4.Our Services
1). General Service:
| Quick Reply | All enquiry or email be replied in 12 hours, no delay for your business. |
| Professional Team | Questions about products will be replied professionally, exactly, best advice to you. |
| Short Lead time | Sample or small order sent in 7-15 days, bulk or customized order about 30 days. |
| Payment Choice | T/T, Western Union,, L/C, etc, easy for your business. |
| Before shipment | Take photos, send to customers for confirmation. Only confirmed, can be shipped out. |
| Language Choice | Besides English, you can use your own language by email, then we can translate it. |
2). Customization Service:Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor-made according to customer's requirements.
