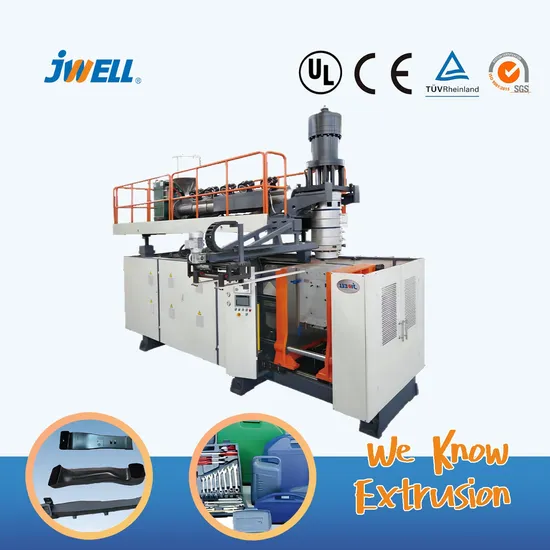

Jwz-Bm 30L 50L 100L 160L Lubrication Oil Bottle Blow Molding Machine

Product Description

Product Description
Product Parameters
Descriptions:
·Suitable for producing different kinds of car urea box, tool box, automotive seat, auto air duct, auto flow board, bumper and Car Spoilers.
·Adopt high output extrusion system,accumulating die head.
·According to the different material, optional JW-DB single station hydraulic screen-exchanger system.
·According to the different product size, customized the platen type and size.
·Optinal hydraulic servo control system.
·Optinal bottom sealing,take-out robot.

Model	Unit	BM30	BM50	BM100	BM160
Max product volume	L	30	50	100	160
Dry cycle	Pc/h	600	450	360	300
Die head structure		Continuous type
Main screw diameter	mm	80	90	100	100
Max plasticizing capacity (PE)	kg/h	120	180	190	240
Driving motor	Kw	37	45	55	90
Oil pump motor power(Servo)	Kw	22	30	30	30
Clamping force	KN	280	400	600	800
Space between platen	mm	400-900	450-1200	500-3000	500-1400
Platen size W*H	mm	740*740	880*880	1020*1000	1120*1200
Max.mould size	mm	550*650	700*850	800*1200	900*1450
Heating power of die head	Kw	20	28	30	30
Machine dimension L*W*H	m	4.3*2.2*3.5	5.6*2.4*3.8	5.5*2.5*4	7*3.5*4
Machine weight	T	12	13.5	16	20
Total power	Kw	95	110	135	172

Certifications
Company Profile
Jwell was founded in 1997, China Plastics Machinery Industry Association vice president unit, plastic extrusion equipment, chemical fiber spinning complete sets of equipment manufacturers. The production bases of Jwell company cover about 7,000,000 square meters and are consisted with 8 parts, which are located in Jiading district of Shanghai where the head office of the company locates, Haining and Zhoushan City of Zhejiang Province, Taicang City and Liyang City of Jiangsu Province, Chuzhou City of Anhui Province and Thailand. The company has 26 professional companies and nine large-scale gold processing plants and three heat treatment nitriding plants, with an annual output of 3000+ sets of high-grade plastic extrusion production lines and other complete sets of equipment, marketing in more than 120 countries and regions.
Jwell has a high-quality team and an experienced team of mechanical and Electrical Commissioning Engineers, as well as an advanced machining base and Standard Assembly Workshop.
Our Advantages
Workshop Processing
Quality Control
Exhibition
Packaging & Shipping
FAQ
Q1. What about the payment way?
A1. By TT, L/C at sight or ****** trade assurance. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
Q2. Installation and stuff training available from you?
A2. Yes, we have rich engineers around the world which can send to your factory and train your workers. Also we can online guide your members.
Q3. How long is the guarantee?
A3. We offer you high quality machines with 12 months guarantee and reply you as soon as possible within 6 hours.
Q4. If the machine some parts is broken one day, how can we get help from you?
A4. We will send you spare parts free of charge If they are in warranty, not including easy-broken parts. For easy-broken parts, we will only charge a cost fee.
Q5.How does your factory do regarding quality control?
A5.We have passed the IS09001:2000 Quality Management System and CE certificate and we have a special QC department in charge of products' quality. If you also need other certificates, we also can help to apply.
Q6. What is your packaging?
A6. Our conventional packaging is: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the wooden bracket.
Q7. How can we check the machines before delivery?
A7. We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery. We accept third-party testing. Except above points,we will provide detailed testing report.
