Big Water Tank 1000 L 2000 L HDPE PP Plastic Drum Blow Molding Machine
| US$300,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ABLD120
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Application
Bottle
Max. Product Volume
3000L
Blow Moulding Type
Extrusion Blow Moulding
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Apollo
Certificate
Ce
Transport Package
Film Packing
Specification
CE/SGS
Trademark
APOLLO
Origin
China
HS Code
8477301000
Production Capacity
2 Set/Sets Per Month
Product Description

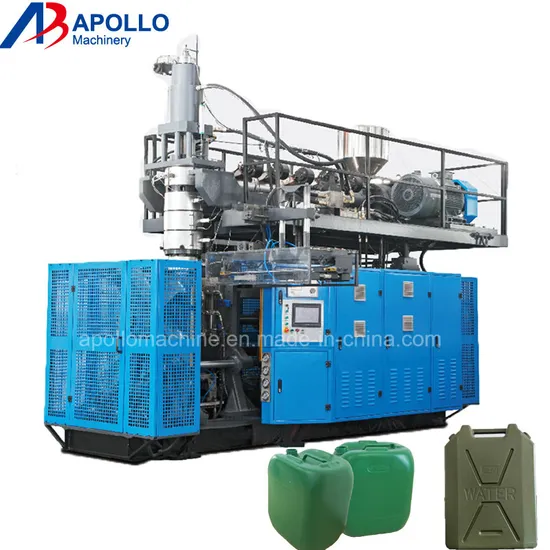

Tanks Extrusion Blow Molding Machine ABLD150:
ABLD150 plastic drum making machine was specially designed for making plastic water tanks,chemical drums,plastic cans, lubricant oil drums,plastic drums, plastic toys and other plastic containers not over 3000L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 3000L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Accumulation die head, 100 point parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
(8)Equipped with germany servo system , can save more than 40% power and very stable .
Technical Parameters: ( ABLD150)
Max. Product volume | 3000 liters |
Screw diameter | 150mm |
Screw L/D ratio | 33L/D |
Screw drive power | 132KW |
Screw heating capacity | 36 KW |
No.of heating zone | 6 zones |
Output of HDPE | 620-840KG/H |
Oil pump drive power | 75 KW |
Clamping force | 1800 KN |
Max.size of mold | 1730 X 2200mm |
Mold stroke | 1000-2700mm |
Max.die diameter | 1000mm |
Blowing pressure | 1.2 mpa |
Air Volume | 6 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 240L/MIN |
Size of Machine | 11.5x7.5x8m |
Weight of machine | 72 ton |
