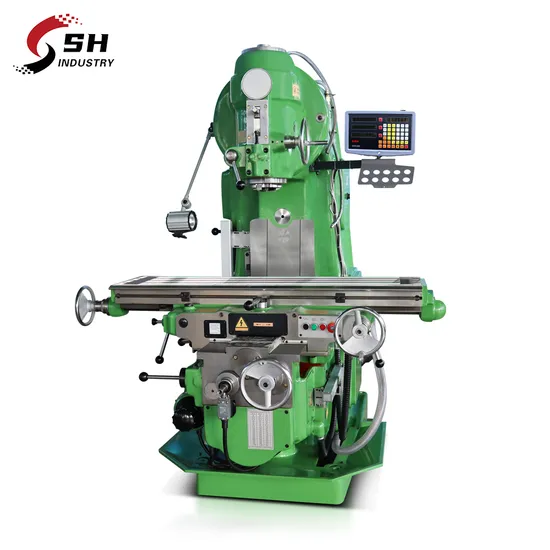

Vertical Knee Type Milling Machine X5032 X5040 Heavy Duty Vertical Universal Milling Machine

Product Description

Vertical Knee Type Milling Machine X5032 X5040 Heavy Duty Vertical Universal Milling Machine
Product Description
Characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees,
Application:
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Main technical parameters:

Specifications	Units	X5032	X5040
Table size	mm	1320x320	1700x400
T-type slot numbers / width /space	mm	3-18-70	3-18-90
Max. load of table	kg	500	800
Longitudinal travel (manual/auto)	mm	700/680	900/880
Transverse travel(manual/auto)	mm	255/240	315/300
Vertical travel (manual/auto)	mm	370/350	385/365
Cutting feed speed	mm/min	X.:23.5-1180.Y:15-786.Z:8-394	X.Y:23.5-1180. Z:8-394
Rapid feed speed	mm/min	X:2300.Y:1533.Z:770	X.Y:2300..Z:770
Spindle travel	mm	70	85
Distance between spindle nose and table surface	mm	60-430	130-515
Max. swivel angle of table		±45°	±45°
Spindle speed step	(steps)	18	18
Spindle speed range	rpm	30-1500	30-1500
Spindle motor power	KW	7.5	11
Overall dimensions	mm	2294x1770x1960	2560x2130x2298
Machine weight	Kg	2800	4250

Detailed Photos


Company Profile



Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
