20 FT &40FT Automatic Hydraulic Telescopic Spreader for 20FT 40FT Containers

Product Description

QSHI full Automatic 20-40ft telescopic Spreader for Loading ISO Containers

Description:
QSHI LS series container spreaders are designed for loading and unloading ISO containers. The LS series full automatic spreader can used on RMG, RTG,STS crane and other lifting equipment. Full-electric telescopic spreader, full-electric lock and unlock.
The LS series spreader can handle up to 20 tons and other tons of safe working load (SWL). It is equipped with a high-performance power unit to operate the ISO floating twist lock and flip drive.
-The repair and maintenance of the electric spreader will be greatly simplified, thus reducing the cost of use.
-High working reliability, simple repair and maintenance will make the electric spreader work more reliable.
-The motor is only energized when it needs to move, and it usually does not consume electricity. The low energy consumption also reduces the cost of using the spreader.
-The electric spreader has a compact structure and light weight.
Drawing:
Technical parameters:

/Model:GBM20		/ Power voltage/ Frequency		AC 380V (3P)/50HZ(/ as agreed)
ISO20',40'45' For operation with ISO standard 20',40'and45' containers		Control voltage		AC 220V
Rated lifting load	20T	Total power		5KW
Allowable load eccentricity	1.25m , 0.26m Length direction: 12.5m, Width direction :0.26m	Precaution class		IP 55
Load of lifting lugs at four corner	5t×4	Twistlock Mode	ISO floating twistlock, driven by an electric motor
() Self-weight (spreader)	7.2t	Telescopic Mode	The telescopic system is driven by means of an electric motor connected to an endless chain.
(20'40') Expansion time (20'to 40')	~ 30 S	Flippers Device	/ The corner flippers are drived by electric motor or Fixed guide plate
( 90° ) Twistlock rotation 90°	< 1 S
( 180°) Flipper through 180°	5~7 S	Application	,, RMG, RTG,Crown block

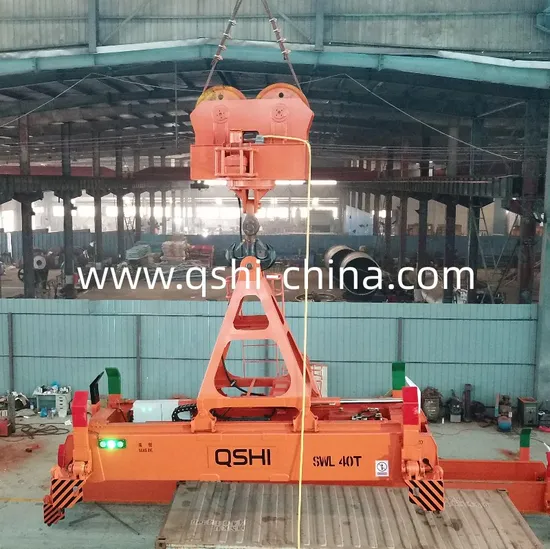

Photos for reference:
