Rainy Night Marking Reflectance Coefficient Measuring Instrument

Product Description

Product Description

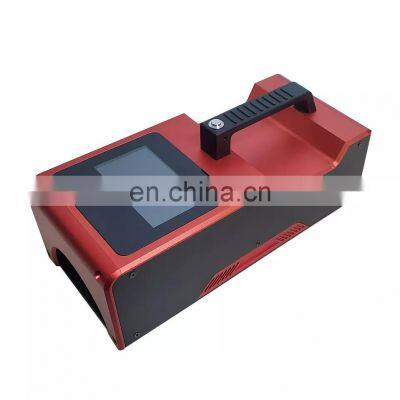

LA-6116 Rainy Night Marking Reflectance Coefficient Measuring InstrumentUsage OverviewLA-6116 Rainy Night Marking Line Retroreflective Measuring Instrument. The upgraded version of our company on the original marking line is an open optical path portable field measuring instrument which is used to measure the retroreflective brightness coefficient of the marking line. The unit is mcd · m-2 · lx-1. The main characteristics of its research: it simulates the motor vehicle driving on the road at night, the headlights illuminate the road (made of retro-reflective materials), and after being reflected, the brightness observed by the driver in the cab, The measured parameter is the nighttime retroreflective brightnesscoefficient, or RL value. This instrument can measure the retroreflective brightness coefficient of the reticle under three conditions of dry, wet and continuous rainfall. It meets GB / T 26377-2010 "Retroreflective Measuring Instrument", GB/T16311-2009 "Road Traffic Marking Quality Requirements and Testing Methods", JJG (Traffic) 059-2004 "Retroreflective Measuring Instrument Verification Regulation", support JTG F80 -1-2017 "Highway Engineering Quality Inspection and Evaluation Standards", Jiangxi and Sichuan Local Standards DB36 / T978-2017 "Rainy Night Road Traffic Reverse Cursor Line Quality Requirements and Testing Methods", DB51 / T2429-2017 "Rainy Night Highway Traffic Recurve Line Quality Requirements and testing methods "and other standard requirements.Product DescriptionFeature 1. Open optical path design, support measurement under dry, humid and continuous rainfall conditions;2. Quick measurement (reverse reflection brightness coefficient value measured within 1.5 seconds);3. Simple calibration procedure; calibration system in line with international standards4. Long standby time, and supports fast charging;5. 5 inches sunlight screen, the operation interface can be seen clearly under the light;6. Support to store more than 100,000 pieces of detection data, including measurement data, operator, road information, GPSinformation and detection time, etc.7. USB data interface, test report is exported to computer in the form of database8. Real-time voice broadcast of measurement data;9. Bluetooth printer prints out the test results on site;10. Touch the keyboard to input Chinese characters, English and characters;11. Real-time sampling and real-time display of on-site temperature and humidity;12. The appearance is exquisite, small and light.SpecificationMeasurement itemretroreflective brightness coefficient mcd.m-2.lx-1Measurement range0-4000Observation angle1.05 °Incidence angle88.76 °, complementary angle is 1.24 °Color temperature of light source2856 ± 50KMeasurement aperture area200mm x 95mmRepeatability measurement error≤2%Continuous working time of battery> 30hData storage space8GBBuilt-in battery capacity12V / 13AhCharging power supplyDC 15VWorking environment temperature-15 ℃ ~ + 60 ℃Ambient humidity<98%, no frostVolume of the whole machine360mm x 135mm x 173mmOur AdvantagesInstallation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face. · Without visiting, we will send you user manual and video to teach you to install and operate.After Service · One year guarantee for whole machine. · 24 hours technical support by email or callingAny questions, please contact me without hestitation, welcome your inquiry!Price can be negotiatedour customerCompany Profile ` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive pricePacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related Products
