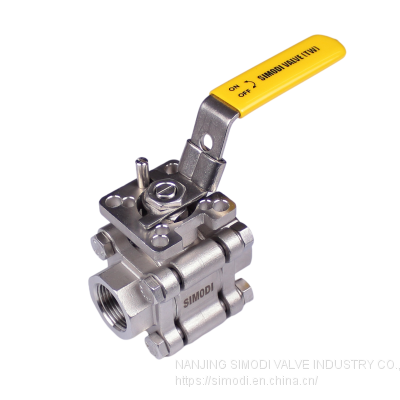

3-pc 2000psi NPT ISO 5211 DIRECT MOUNTING PAD CF8M BALL VALVE
Product Details
Product Details
Product Description
Product Description| Product Name | Three piece threaded full bore iso 5211 direct mounting pad ball valve |
| Model Number | 3PC Ball Valve |
| Pressure | 2000 psi（CWP) for DN8~DN251500 psi (CWP) for DN32~DN50 1000 psi（CWP) for DN65~DN100 |
| Size Range | DN8 to DN100 |
| Type of Port | Full Port |
| Wall Thickness | ASME B16.34 |
| Material | CF8, CF8M, WCB |
| Ball | CF8, CF8M |
| Seat | PTFE, RPTFE, PTFE+50%SS, TFM1600, TFM4215 |
| Temperature | According to seat material |
| Media | Water / Oil / Gas |
| Connection | Screw End / Socket Weld / Butt Weld |
| Thread confirm to | ANSI B1.20.1, BS21, DIN 259 / 2999 |
| Type of thread | NPT, BSPT, BSPP, BSP, PT, DIN2999, DIN259, ISO228 |
| Handle sleeve | According to customer requirements |
| Features | 1. INVESTMENT CASTING 2. FLOATING BALL 3. BLOW-OUT PROOF STEM 4. LOCKING LEVER HANDLE 5. ANTI-STATIC DEVICE IS AVAILABLE 6. OEM / ODM Product 7. ISO5211 Direct Mounting Pad 8. Thread End / Weld End available |
| Quality Inspection | Mill Certificate 3.1 and/or other per your request |
| Pressure Test | EN12266 |
| Certification | ISO, CE |
| Lead Time | Based on the quantity, sample order available |
| Terms | EX-WORK, FOB, CIF, C&F |
| Payment | T/T, LC Before shipment for first order. |
| Place of Origin | China |
| Option | API 607 fire safe design |
