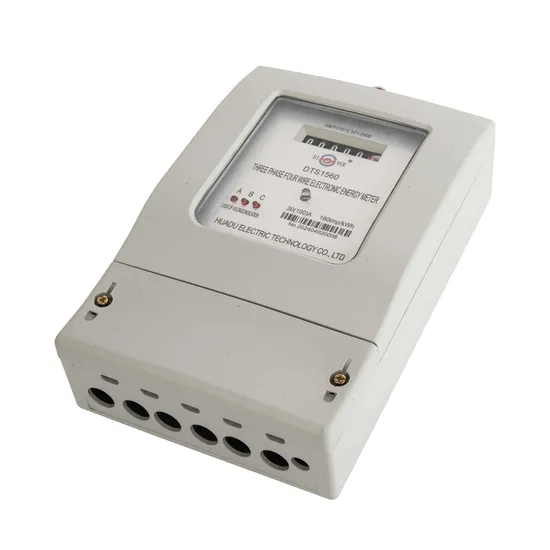

Dts-1560three Phase Three Wire Kwh Meter

Product Description

PRODUCT INFORMATION
DTS-2R Series three phase electronic four wire electronic energy meter is a kind of new style three phase four wire active energy meter. It adopt stable performance,low power consumption of industrial components, use the process carefully design and manufacture.
SPECIFICATIONS

Applicable Standard	IEC 62052-11 and IEC 62053-21
Accuracy	Class1/2
Voltage	3P4W: 3×220/380V 3P3W: 3×57.7/100V,3×380V,3×100V
Current	1.5(6)A,3(6)A,5(20)A,10(40)A,15(60)A,20(80)A,30(100)A ETC.
Frequency	50Hz or 60Hz
Display	Register 5 integer plus 1 decimal, 20(80)A,30(100)A 6 integer LCD 5 integer plus 1 decimal digital number

*For special requirements, such as Anti tamper,RS485,IR etc.,it is to be discussed for settlement.
Bottom Side PhoABOUT HUADU Huadu Electrical Technology CO.,Ltd is located in Wengyang industrial zone, liushi town,Yueqing City, Zhejiang province, China, which focus on electronic and electro-mechanical meter.
The company is a diversified enterprise integrates development, design, production and marketing together. Driven by innovation, Huadu keeps perfecting existing products and developing new product lines. We have developed a front board installed energy meter, an inserting installed energy meter a DIN-rail installed energy meter, According to meter functions, there are munti-functional energy meters, multi-rate energy meters, electric power line carrier wave energy meters, network energy meters, and multi-user energy meters in our product range. certification with superior quality are popular in the global market.
Our company posses high accuracy special device, advance technology, laborious workmanship and various styles. We also have rights for import and export, our products are widely sold well to southeast Asia, Middle East, South America and other areas.
We believe that our company will be more powerful and far better by your support!
