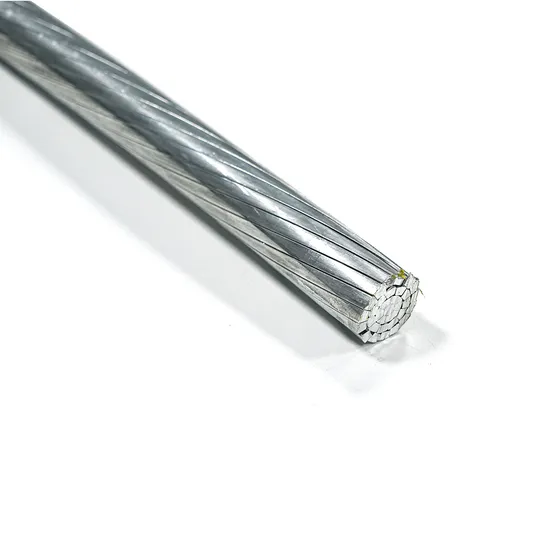

AAC All Aluminum Conductor Bare IEC ASTM Standard Conductor
| US$8.00-20.00 | 1,000 Meters (MOQ) |
Basic Info.
Model NO.
AAC
Wire Core Material
Aluminum
Certification
ISO, CCC, CE
Model
Bare Conductor
Brand
Panghao
Transport Package
Wooden Drum
Trademark
PangHao
Origin
Ningjin
Product Description
ApplicationThe cables are designed for aerial power transmission lines.
Manufacturing Standards
ASTM,ICEA,BS,DIN,IEC,GB,AS/NZS etc.
AAC-ASTM Standard
| Short name | Code name | Total Area AWG | Stranding and Wire diameter mm | Approximate Overall Diameter mm | Linear Mass kg/km | Max. DC Resistance at 20ºC Ω/km |
| AAC | Peach | 6 | 7/1.554 | 4.67 | 37 | 2.1692 |
| Pose | 4 | 7/1.961 | 5.89 | 58 | 1.3624 | |
| Iris | 2 | 7/2.474 | 7.42 | 93 | 0.8577 | |
| Pansy | 1 | 7/2.776 | 8.33 | 117 | 0.6801 | |
| Poppy | 1/0 | 7/3.119 | 9.36 | 147 | 0.5390 | |
| Aster | 2/0 | 7/3.503 | 10.51 | 186 | 0.4276 | |
| Phlox | 3/0 | 7/3.932 | 11.80 | 234 | 0.3390 | |
| Oxlip | 4/0 | 7/4.417 | 13.26 | 296 | 0.2688 | |
| Valerian | 250 | 19/2.913 | 14.57 | 349 | 0.2275 | |
| Sneezewort | 250 | 7/4.80 | 14.4 | 349 | 0.2275 | |
| Laurel | 266.8 | 19/3.01 | 15.05 | 373 | 0.2133 | |
| Daisy | 266.8 | 7/4.96 | 14.9 | 373 | 0.2133 | |
| Peony | 300 | 19/3.193 | 15.97 | 419 | 0.1896 | |
| Tulip | 336.4 | 19/3.381 | 16.91 | 470 | 0.1691 | |
| Daffodil | 350 | 19/3.447 | 17.24 | 489 | 0.1625 | |
| Canna | 397.5 | 19/3.673 | 18.36 | 555 | 0.1431 |
