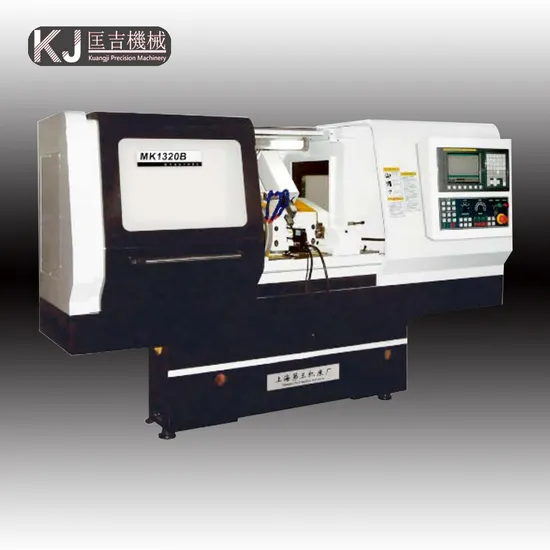

Mk1320b Heavy Duty High Precision CNC Cylindrical Grinding Machine Flat Surface Cutter Grinder 500 mm
| US$32,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MK1320B
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Voltage
380V
Transport Package
Wooden Case Packing
Specification
2310x1830x1750 mm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Main Specifications and Technical Parameter | |
| Item | MK1320B |
| Max/min diameter to be ground | 8~200 mm |
| Max length to be ground | 500 mm |
| Max workpiece weight | 50 kg |
| Max travel of the table | 600 mm |
| Max angle of swivel of the table | Clockwise 5°Anti-Clockwise 9° |
| Traverse speed of the table | 0.01~5 m/min |
| Min feed of the table | 0.002 mm |
| Spindle speed | 60,85,120,170,230,460 r/min |
| Spindie hole taper | Morse No.3 |
| Chuck | 125 |
| Tailstrok quill hole taper | Morse No.3 |
| Travel of tailstork quill | 25 mm |
| Max feed of wheelhead | 170 mm |
| Min feed of wheelhead | 0.001 mm |
| Grinding wheel size(Dxtxd) | 400x40x127 mm |
| Max perpheral speed of grinding wheel | 48 m/s |
| Work pressure in hydraulic sysytem | 0.8~1 Mpa |
| Flow rate of cooling pump | 25 L/min |
| Workhead motor power | 0.25/0.37 kw |
| Grinding wheel motor | 3 kw |
| Total motor power | 8 kW |
| Overall dimensions(LxWxH) | 2310x1830x1750 mm |
| Weight of machine | 3000 kg |
| Work precision | |
| External roundness | 0.0015 mm |
| Cylindricity | 0.005 mm |
| The surface roughness Ra | Ras<=0.32 um |
