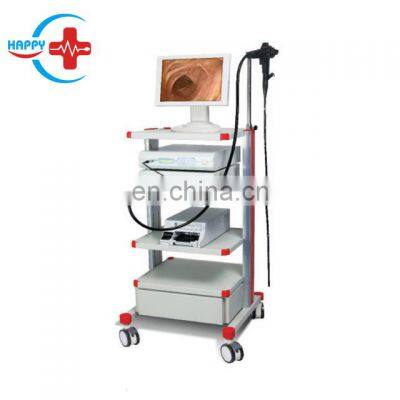

HC-I040-1 trolley type LCD Display ent endoscope Video electronic Gastroscope system

Product Description

Product Description
HC-I040-1 trolley type LCD Display Video electronic Gastroscope system Product Description Features for HC-I040-1 trolley type LCD Display Video electronic Gastroscope system : Diameter of distal- endΦ9.8mm / 9.2mmDiameter of insert tubeΦ9.8mm / 9.2mmClamp apertureΦ2.8mmWorking length1035mmTotal length1335mmView of field120 ºDepth of view3-100mmResolution Sony 440,000 Pixels high resolution Photosensitive CCDTip deflectionup 210° down 90° L/R 100°Remark We can provide OEM service, technical details can be customized. Characters:Part 1: GastroscopeBending operation : Traction chain structure, whole sealed waterproofImage display : Two image display optionalSplit machine : Main part and light source are splitedQuality certification : ISO9001,13485,CEWarranty : One year(free), permanent repairs (not free)Package size :64*18*48cm (G.W.:5.18kgs) Part 2: Video processor1. Voltage: 220-240V 2. Frequency: 50-60HZ 3. System: PAL 4.Image regulation : Automatic regulate light, keep the image at its best Video processor : DSP-Digital image processor with powerful multi-function , Brightness / color / contrast adjustable 0-100 level , Svideo / AV output.Reverse function :Black and white reversed.White balance : Auto white balance , manual white balance.Manual white balance :Manual white balance can be calibrated color, color adjustable (Red, Blue).Electronic shutter : 10 level electronic shutter adjustment.Metering : Average metering, peak metering, metering area delineated.Contour enhancement : 10-level contour enhancement.Lens optional : Manual lens, automatic lens, video lens three optional.Sharpness adjustment : 0-30 sharp changes of the image in fine processing.Digital WDR :Digital broadband function.Backlight compensation : Improve the average brightness of the whole screenCama line :Cama line clarity 6 level adjustment.R/L Mirroring: The left and right mirror position can be changing.Package size :50.5*46*20cm (G.W.:7.34kgs)Part 3: Cold light source1. Voltage: 220V-240V 2. Frequency: 50-60HZ3.lamp Power: 15V-150W environmentally friendly halogen tungsten lamp 4. Illumination: 70000LX (using special measuring tools)5. Color Temperature: 3000~7000K 6. Air Pump Pressure: 30-60kpa Air Flow: 4/L/min-10L/min (Quiet pump)7.Electric switch : AB light two sets light sourceMain Function: 1.Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector irradiation. 2. Built with micro axial fan cooling temperature. 3. Adopt dimming electronic control unit organization. 4. Dual-lamp light sources, the lamp can be freely exchanged in order to extend lamp life, convenience to the operationPackage box:54*47*27.3cm (10.54kgs) Part 4: LCD Display1. Display size: 15"2. Power Supply:External Power Supply 12V3. Resolution:1024X7684. Display Ratio:4:35. Color:16.7M6. Camoration Brightness:180±10 cd/ m27. Max.Brightness :400 cd/ m28. Contrast Ratio:700 : 19. Viewing Angle:120/140 Response Time:8msPackage size : 44*36.5*16.5cm (G.W.:6.0kgs)Part 5: Equipment trolleySize : 500 * 700 *1350mmPackage size:118.5*63.5*22cm (G.W.:44.5kgs)Pictures for HC-I040-1 trolley type LCD Display Video electronic Gastroscope system : Packaging & Shipping Company Information Clients and Projects contact Our Services FAQ1. How to place order of HC-I040-1 trolley type LCD Display Video electronic Gastroscope system?A: Firstly we confirm product details and then send the Proforma Invoice, You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram, after we confirm your payment then ship the product to you once finished production. 2. For HC-I040-1 trolley type LCD Display Video electronic Gastroscope system product,What’s the minimum order quantity (MOQ)?A: For disposable material,We have our own MOQ,For our HC-I040-1 trolley type LCD Display Video electronic Gastroscope system, our MOQ:1pc, 3. What is your warranty?A: For most products the warranty is for 12 months, some products we provide 18 months warranty. For HC-I040-1 trolley type LCD Display Video electronic Gastroscope system , we provide 12 months warranty.4. What’s your delivery time?A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity. For HC-I040-1 trolley type LCD Display Video electronic Gastroscope system , the delivery time is 10 working days.5. How to ship the product?A: The shipping way normally depand on your quantity,total CBM and weight. We have our own shipping company to provide best shipping cost and efficient way.
