Versatile Surgical Ceiling Pendant for Streamlined ICU Equipment Access

Product Description

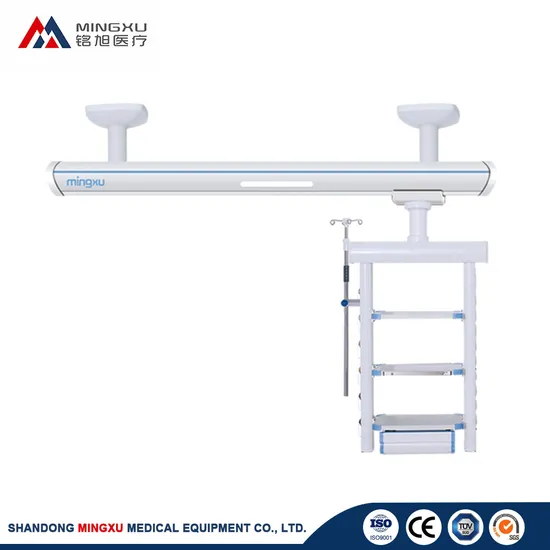

Introducing the MXDQ-I ICU Beam Suspension Bridge, a pioneering solution from Shandong Mingxu Medical Equipment Co., Ltd., designed specifically for modern hospital ICU wards. This indispensable medical rescue auxiliary equipment is engineered to enhance operational efficiency and patient care. The MXDQ-I is artfully crafted with a robust bridge frame, seamlessly integrating both dry and wet sections for strategic functionality. Its ingenuity lies in the smart and practical dry-wet separation structure, ensuring optimal organization and safety within the ICU environment. In the wet area, you'll find a versatile and adaptable flexible infusion stand. Both the dry and wet sections boast an advanced instrument platform with customizable lifting adjustments, providing an exceptional level of convenience and adaptability to meet diverse medical needs. Additionally, the integration of oxygen, air, suction, power supply, network output terminals, and an infusion pump stand in both sections reflects a comprehensive approach to medical care and technological integration. The MXDQ-I ensures that each component is tailored for precision and usability, with various additional systems available to align perfectly with the hospital's specific requirements. Shandong Mingxu Medical Equipment Co., Ltd. remains committed to pushing the boundaries of healthcare innovation, making the Versatile Surgical Ceiling Pendant an invaluable asset in streamlining ICU equipment access and enhancing patient outcomes. Main technical parameters 1. Working Power Supply: Experience uninterrupted performance with AC220V, 50Hz; Input Power: Robust 6KVA.
2. Bridge Length: Approximately 2600mm, tailored to your specifications via on-site measurement; Lighting Section: State-of-the-art LED including 1 set for night illumination.
3. Main Material: Constructed with high-strength aluminum alloy profiles, featuring an innovative fully enclosed design that eliminates sharp corners and conceals screws. The surface is enhanced with eco-friendly, semi-matte powder coating, offering UV protection, corrosion resistance, and effortless cleaning. Adaptability with communication and video interfaces as per your requirements. Secure ceiling installation ensures stability and firmness.
4. Wet Area: Boasts a net load capacity of ≥ 200kg, ensuring robust support.
a. Countertops: Equipped with 2, including a dynamic three-side guide rail equipment tray (maximum load capacity of each tray is ≥ 80Kg) with adjustable height and rounded anti-collision design. Dimensions: 550*400mm. Includes 1 drawer, dimensions: 400*350*150mm.
b. Column-Type Box: Length ≥950mm, offers a fully sealed design with no surface grooves or metal exposure, separating gas and electricity. Ensures simultaneous use of interfaces.
c. Gas Interface: Equipped with national standard terminals featuring 2 oxygen, 2 negative pressure suction, and 2 compressed air options. Each interface is uniquely colored and shaped to prevent misconnection, guaranteeing over 20,000 plug-in and unplug cycles.
d. Electrical Socket: Features 5 versatile ten-hole sockets, rated at 220V, 10A.
e. Additional Equipment: Includes 2 equipotential grounding terminals, 1 rotatable infusion combination stand, 1 platform winder, and interfaces for network and telephone connectivity.
f. Translation and Rotation: Capable of 400mm left-right translation with a rotation limit device; box rotation angle of ≥340°.
5. Dry Area: Supports a net load capacity of ≥200kg, ensuring steadfast durability.
a. Equipment Tray: Features 3 double-side guide rail trays, each with a maximum load capacity of ≥80Kg, adjustable height, and rounded anti-collision design. Dimensions: 550*400mm. Includes 1 drawer, dimensions: 400*350*150mm.
b. Suspended Column Box: Length ≥1200mm, fully sealed with no surface grooves or metal exposure, ensuring separation of gas and electricity. Interfaces are ready for concurrent use.
c. Gas Interface: Comprises national standard terminals with 2 oxygen, 2 negative pressure suction, and 2 compressed air options. Distinct coloration and shapes of interfaces provide an anti-misconnection function, exceeding 20,000 plug-in and unplug cycles.
d. Electrical Socket: Provides 8 five-hole sockets, rated at 220V, 10A, for comprehensive connectivity.
e. Equipotential Grounding: Incorporates 2 terminals, alongside a platform winder and connectivity interfaces for network and telephone.
f. Translation and Rotation: Supports 400mm left-right translation with a rotation limit device; box rotation angle of ≥340° ensuring flexibility and precision.
Standard configuration list

NO.	Item	Quantity	Remark
1	Base	2
2	Beam	1
3	Tower body	2
Wet area tower configuration
4	oxygen	2	Standard national standard, optional German standard, British standard, American standard terminal
5	Negative pressure	2
6	Compressed air	2
7	Ten-hole power socket	5
8	Network Interface	1
9	Communication interface	1
10	tray	2
11	drawer	1
12	Infusion combination stand	1
13	Ground terminal	2
14	Platform Winder	1
Dry area tower configuration
15	oxygen	2	Standard national standard, optional German standard, British standard, American standard terminal
16	Negative pressure	2
17	Compressed air	2
18	Five-hole power socket	8
19	Network Interface	1
20	Communication interface	1
21	tray	3
22	drawer	1
23	Ground terminal	2
24	Platform Winder	1
25	Certificate	1
26	User Manual	1
27	Product warranty card	1
28	Hexagon wrench	s=3,s=4,s=5,s=6,s=8	each 1
