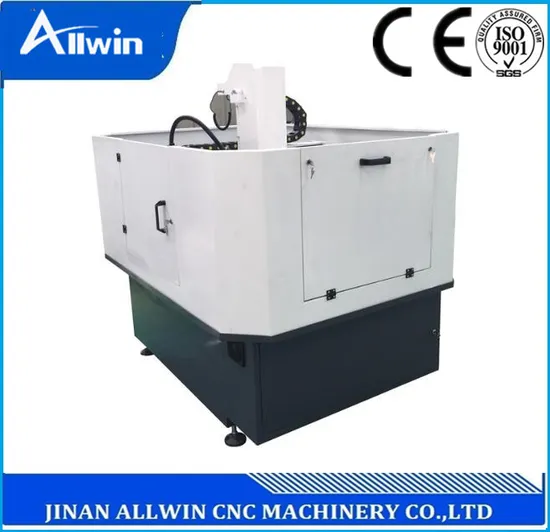

3 Axis 4040 CNC Metal Mould Engraving Machine CNC Router

Product Description

Technic specification:
400x400mm Metal Cnc Milling Machine With half Cover
Features: 1. Aluminum grooved and moving table, ideal for machining metal or wooden molds
2. Axes X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity
3. TBI ball screw transmission improves positioning accuracy and fast speed
4. Selection of high speed 3.0kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5. With the Nc studio operating system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day's workrements
Other Accessories with this machine:
1. Feeler block 2. Wireless handwheel 3. LED light 4. Stainless steel dust 5. Water Pump 6. Tools 7. Power Cables 8. USB Cables 9. User's Guide 10. CD For installation / operation
Parameter:

Model	Allwin-4040 CNC Mold Machine
X,Y,Z Working Area	400*400*150mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	T-slot Aluminum +PVC
Frame	By cast iron
X, Y,Z Structure	HIWIN Rail Linear Guide and TBI Ball Screw
Z Structure	HIWIN Rail Linear Guide and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 1.0Kw
Max. Rapid Travel Rate	16000mm/min
Max. Working Speed	10000mm/min
Spindle Power	5.5 kw water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Stepper Motor
Working Voltage	AC220/380V, 50/60Hz
Command Language	G Code
Operating System	Ncstudio or Mach3 PC Software
Computer Interface	USB
Flash Memory	128M(U Disk)
X,Y Resolution	<0.01mm
Software Compatibility	Type3/Ucancame V9 Software, (Option: Artcam Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Inverter	Delta/Fuling
Electrical components	Schneider
Limit switch	OMRON
Driver	Leadshine or Yako
Warranty	One year, expect consumable parts
ER clamp holder	ER 11

Advantages: 1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving
Packing & shipment :
Save space as much as possible for container loading.
Inside:Water-proof Plastic Film Package With Foam Protection Outside:Solid Seaworthy Wood Box Package Below: Steel Tube
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How to contact us?
Contact information:
JINAN ALLWIN CNC MACHINERY CO;LTD
Contact Person: amy
Mobile:0086-18560205338
Address: Luding Building,Jinan City, Shandong Province, China.
Website: http://allwin-cnc.en.made-in-china.com
