Gantry Milling Machine CNC Profile Machining Processing Center or Window Door Curtain Wall

Product Description

Gantry Milling Machine CNC Profile Machining Processing Center or Window Door Curtain Wall
Local After-sales Service in India and Vietnam
Advanced manufacturing solutions provider

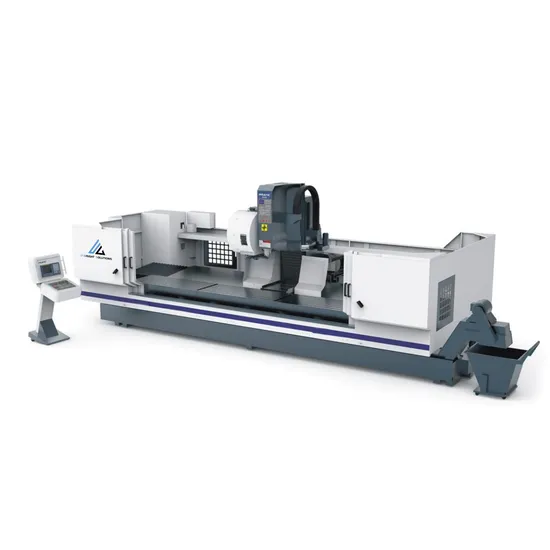

The machine for column mobile processing center, the whole machine adopts moving column, ensure the overall rigidity and compact structure, machine rigidity is good. Easy to dispose of scraps and drainage. Good precision retention, can be used for precision cutting;automotive, textile, window frame, civil aviation, motor, valve and other industries.
Applied in the fields of rail transit components, mechanical automation, automotive components, 5G communication, mechanical arm crossbeams, etc., for composite processing of steel, aluminum, non-metallic components such as drilling, milling, tapping, flying surfaces, etc.
The entire series adopts BT40 spindle tapered holes, with a spindle outer diameter of 140mm
Equipped with a disc type 24 tool magazine capacity
Equipped with automatic chip removal system
Equipped with automatic cooling system
Product Parameters

route or distance of travel	X route or distance of travel	2500-8500 (other length)
	Y route or distance of travel	500mm
	Z route or distance of travel	450mm
principal axis	main shaft speed	10000rpm (20000rpm electric spindle)
	taper hole of spindle	BT40 OD: 150mm
tool magazine	Knife library form	disc type
	Knife library capacity	24 pcs
	Adjacent change knife time	2 sec
translational speed	X axis shift	60 m/min
	Y/Z axis shift	28/28 m/min
	Cut into give speed	15000 mm/min
operating system	FANUC	SIEMENS
Spindle drive motor	11 kw	13 kw
X/Y / Z drive motor	3.0 KW	3.1KW
lube oil system	self-lubricate
coolant passage	injection water cooling
definition	X axis positioning is accurate	0.05 mm (Rating 0.01mm)
	The Y / Z is positioned precisely	0.02 mm
	Repeat repeat precision (X / Y / Z)	0.01mm
rating of machine	Pressure demand	6 kg/cm²
	altitude	2800 mm
	floor space	6400-15500*3000 mm
	weight	10000-22000kg
