3FT Symons Hydraulic Cone Crusher for White Tungsten Black Tungsten Mining Stone Selecting Plant

Product Description

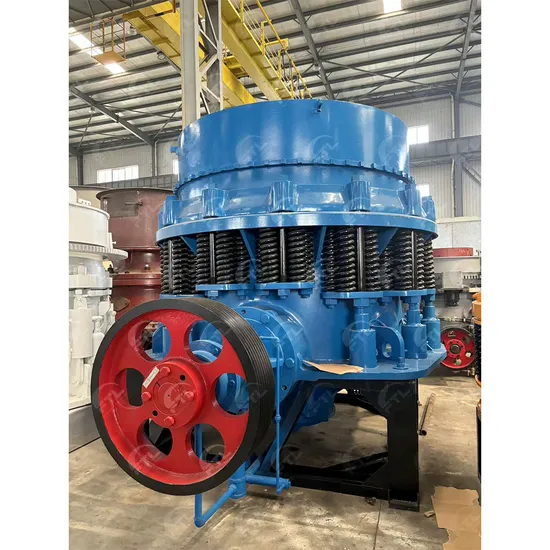

Symons cone crusher
Symons cone crusher is used as a secondary crusher or fine crusher for occasions that do not require high particle size standards. Since the Simmons cone crusher controls the particle size of the product by reducing the size of the discharge opening, it is not suitable for ultra-fine crushing and sand-making operations.
Symons cone crusher is widely used in the metallurgical industry, building materials industry, road construction industry, chemical industry, and silicate industry. It is suitable for crushing ores and rocks with medium hardness and above. It has the characteristics of strong crushing force, reliable structure, high efficiency, large output, low operating cost, convenient adjustment, and economical use. Symons cone crusher is used to crush more than 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate, etc. Different final output sizes can meet your different needs.
Product Description When Symons cone crusher works, the motor drives the eccentric sleeve rotating through the V-belt, the large pulley, the transmission shaft, the bevel gear, and the large bevel gear.
The conical shaft core rotates and moves by the driving of the eccentric sleeve, causing the surface of the broken wall to be close to or leave the surface of the rolling wall, therefore, the material is continuously crushed by the crushing and bending in the annular crushing cavity composed of the fixed cone and the moving cone.
After multiple extrusion impacts and bending, the material is crushed to the required particle size and discharged through the lower portion.
Product Parameters

We are able to design and manufacture complete sets of crushing plants with capacities ranging from 30tph to 500tph and provide the best and most economical solutions according to customers' requirements on stone specifications, output, application, etc. We have the best one-stop service, providing customers with equipment installation, commissioning, and after-sales service.

There are 4 different types of cone crushers, including hydraulic cone crusher(single-cylinder cone crusher and multi-cylinder hydraulic cone crusher), Spring cone crusher, compound cone crusher, Symons cone crusher.
The crushing cavity is decided by the crushing purpose of ore. The standard model is suitable for medium crushing process, the medium model is suitable for fine crushing process, and the short head model is suitable for fine crushing process.Cone crushers are widely used in the secondary, fine and ultra-fine crushing processes, researched and developed by adopting the world's most advanced crushing technology, integrating mechanics, hydraulics, electric, intelligent control and other technologies together.
In order to find the suitable models and design the best stone crusher plant or sand making line for you, pls kindly inform us the following information:
1.Which kind of material you are going to crush? Soft stone (dolomite, limestone) or hard stone ( granite, basalt, river pebble )? 2. What's the max input size of the material? (In inch,centimeter or milimeter) 3. What's the granularity of the final products you need? (in milimeter, micron or mesh) 4. What's the production capacity you want? How many tons or cubic meters per hour? 5. You want only a Crusher, or a complete Crushing Production Line?
