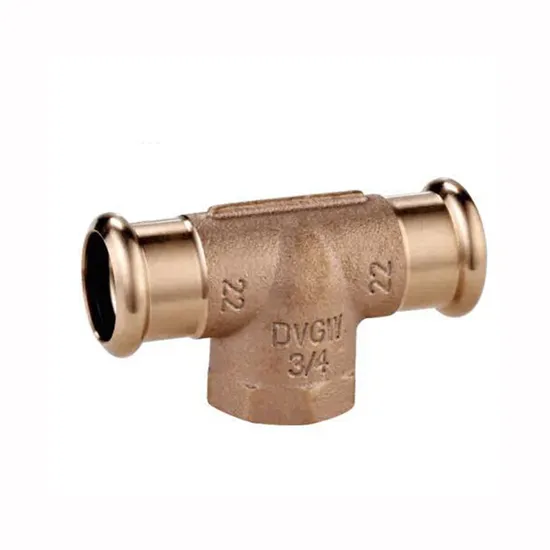

Bronze M Profile Female Press Tee Press Fitting

Product Description

Bronze Female Press Tee Press Fitting
The Press joining is a connection to make permanent and not reversible deform of the fittings on the pipe thus leading to a perfect mechanical joint, while the O-Ring provides for the hydraulic tightening connection. Pressing provides for a constant quality joining, easily reproduced and with a minimum physical effort by the operator. Major savings in installation time and cost compared with traditional jointing methods
A Mixed connection fittings to other systems are made using bronze thread parts with press ends. The thread will be made to meet your local regulation.
Specification:Female/Press end
Available dimension

Item code	T	ID
0702900a	1/2"	12
0702822a	3/8"	15
0702823a	1/2"	15
0702901a	1/2"	18
0702902a	1/2"	22
0702824a	3/4"	22
0702814a	1/2"	28
0702905a	3/4"	28
0702906a	1"	28
0702903a	1/2"	35
0702904a	1/2"	42

Features
a.Material: Bronze CC499K (CuSn5Zn5Pb2-C)
b. A leak free, secure and permanent joint.
c.Flame free installation for ensuring on site safety
d. Inboard with high quality O-Ring for a secure leak free joint when pressed
e. Suitable for use with hard, half-hard and soft copper tubes
3 Reasons to choose Press System
1) Save time, Save money- every connection is made in a fraction of the time when compared to weld, solder or compression systems. On top of this, far less training is needed to use the press tool required for the installation. This means that every installation using the Press System requires less labour, and less cost especially on those larger jobs.
2) A Secure seal in seconds- Every press tool operates differently but one thing stays the same, the strength of the connection. All the installer has to do is cut, calibrate and connect. The press tool will take care of the rest. The auto-cycle feature of most press tools will ensure that every joint is the same, so no guess work needed.
3) Installer safety- The number one concern for any installer when on the job is safety. The Press System offers one of the safest installations on the market. Installations is completely flame free, with no fumes or emissions while installing. This means no fire hazards when installing in occupied premises or retrofits. When the job is all done, there is a faster clean up with no left over waste flux, solder or welding gas.
Pressing Tool
With pressing jaws profile "M"
Space requirements
The pipe spacing in relation to walls, corners and slots, necessary for a secure installation is laid out in the drawings and tables below.
Delivery time and payment term
*Delivery time: Usually 35-45 days after receiving the order
*Payment term: 1) irrevocable L/C ; 2) T/T: 30%T/T paid in advance, 70% balance paid against the copy of B/L.
Company Advantage
*High quality & industrial leading price
*Quick order processing & on-time delivery
*100% pressure leaking test during mass production to ensure high quality and long durability.
*100% QC inspection before shipment
*Innovative & customer-oriented
*Rich experience in exportation more than 30 years
*Modern technical equipment in combination with proficient manual work.
*Full production line including casting, forging, machining line, polishing line and assembling line.
*Rich experience in exporting business
*Innovation is the key to the development of our enterprise.
*Systematic management applied.
*Well equipped with modern test machines insuring reliability and endurance of products.
*Skilled engineers and workers.
*It can be produced by our own designs and brand or according to customers' samples, drawings.
*Samples for customer's confirmation is available
*OEM/ODM Service: Produce the products according to your drawings or samples.
Company Profile
Fada is a leading supplier of Faucet, serving a global marketplace. Fada operates two manufacturing plants in Zhejiang and Jiangxi, China. With more than 30 years manufacturing history, Fada rigidly carries the international Quality Management System standards and insists on everyday progress by striving for higher quality and a better service.
FAQ
Q1: Are you a factory or trader?
A: We are a professional manufacturer for faucets,valves,fitting and floor drain for more than 25 years.
Q2: What is your MOQ?
A: For faucets,our MOQ usually is 1000PCS per item;for fitting,it depends on its size;for valve, our MOQ usually is 1500pcs.
Q3: Can your factory print our logo/brand on the product?
A: Our factory can laser print customer's logo on the product. Customers need to provide us a logo usage authorization letter to allow us to print customer's logo on the products.
Q4: Can I visit you?
A: Yes. Our factory is in Taizhou city,Zhejiang,China. Welcome to visit our factory, look forward to meeting with you.
Q5: How can I get some samples?
A: We usually provide pre-production samples before mass production after customer place order and make deposit.
Q6: What does EPDM stand for?
A: Ethylene-Propylene Diene Monomer
Q7: What are the most common errors made when installing s Press Fittings?
A: Not adequately deburring the end of the tubing, and not inserting the tube far enough into the press fitting.

Q8: What does with top mean?
A: There's a little nub inside which keeps you from inserting a pipe too far or not far enough. A no-stop fitting has no nub allowing you to put the fitting i when the pipes are fixed and can't be separated enough to put on a stop fitting.
