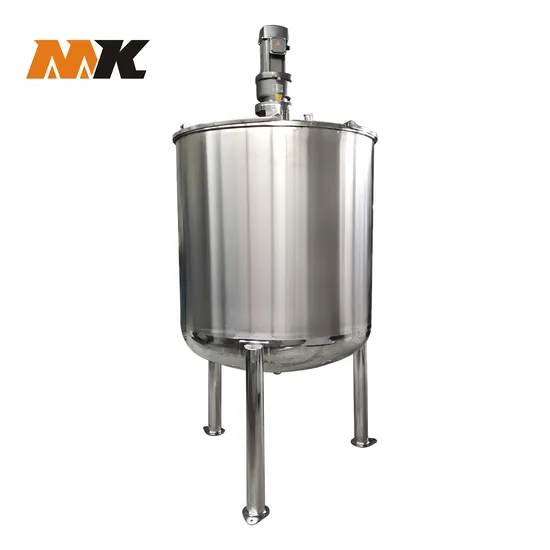

1000L Single-Layer 304 Stainless Steel Mixing Tank for Liquid Feed Additives
Basic Info.
Model NO.
MK-JBG-1000
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid
Application Area
Daily Chemical
Certification
ISO
Condition
New
Cooling Method
Single Layer
Heating Method
Single Layer
Insulation Material
No
Main Material
Stainless Steel
Mixing Drum Shape
Customer Customization
Stirring Type
Spiral
Warranty
One Year
Working
Convection Mixer
Mixer Type
Agitator
Motor Power
1.55 Kw
Cylinder Thickness
4mm
Speed
0~60 Rpm
Layout Type
Verticle
Applicable Materials
Liquid Paste
Sealing Form
Mechanical Seal
Quality Guarantee Period
1 Year
Cylinder Diameter
1000mm
Operating Type
Cycle Operating
Source of Goods
Direct Deal
Thermal Insulation Material
Aluminium Silicate
Transport Package
Wooden Case
Specification
1000L
Trademark
Maike Machinery
Origin
China
Product Description
Product OverviewMixing tank is mainly used for mixing, mixing, blending and homogenizing materials. Stainless steel mixing tank effectively shortens the mixing time, saves labor and speeds up production. It is the main equipment for modern industrial production.
Product structure
Mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft seal device, etc. it can also beequipped withheating device or cooling device according to the process requirements.
Technical parameter
| Type | Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| MK-JBG-05 | 50 | 300 | 0.75 | 30-180 | SUS304 / SUS316L |
| MK-JBG-1 | 100 | 500 | 0.75 | 30-180 | SUS304 / SUS316L |
| MK-JBG-2 | 200 | 600 | 1.1 | 30-180 | SUS304 / SUS316L |
| MK-JBG-3 | 300 | 700 | 1.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-5 | 500 | 900 | 2.2 | 30-180 | SUS304 / SUS316L |
| MK-JBG-8 | 800 | 1000 | 3 | 30-180 | SUS304 / SUS316L |
| MK-JBG-10 | 1000 | 1100 | 4 | 30-180 | SUS304 / SUS316L |
| MK-JBG-20 | 2000 | 1300 | 5.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-30 | 3000 | 1500 | 7.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-40 | 4000 | 1700 | 7.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-50 | 5000 | 1900 | 11 | 30-180 | SUS304 / SUS316L |
| MK-JBG-100 | 10000 | 2000 | 15 | 30-180 | SUS304 / SUS316L |
According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.
