Patented Strong Dulling Type Drill Press (Z4025K/Z4032K)

Product Description

COMPANY PROFILE
Hangzhou West Lake Drilling Machine Co ., Ltd . is the largest manufacturer of drilling presses , milling / drilling machines and tapping machines in China , which was established fifty years ago and has been always on the top of quality , production and varieties in the field of bench drills in China .
With brand " Westlake ", our products have been served for international market since 1956. You may find them widely used in different fields around the country and more than 60 countries / areas worldwide at present . Westlake is one of the most famous trademark among China machine and electric products for exportation , enjoying a high reputation by all customers both domestically and overseas .
Equipped with a R & D center , Metrology and test center , we have advanced product and test equipment such as CNC , Composite Machine Tool , Coordinate Measuring Machine and laser interferometer etc . Our company is experienced and strong in product design and manufacture , in constant pursue of advanced technology and continuous development of CNC . Currently we are supplying three series of Westlake drilling machines , Westlake Precision Machine and Westlake compact - sized CNC with more than one hundred types of products .
we obtained ISO9002QA and ISO9001:2000 certification as early as 1996 and 2002 respectively . Our products have obtained Germany GS and Europe CE certification as well .
Product Description
Main Feature:
1.25/32mm strong industrial type bench drilling machine .
2.Gear driving,high efficiency,great torsional moment.
3.Gear quench,high carrying capacity,long use life.
4.Mainly use at instrument,manufactory and repair area.
Technical Data:

Max.drilling capacity	25/31.5mm
Diameter of column	105mm
Spindle travel	125mm
Distance spindle axis to column surface	235mm
Max. distance spindle nose to base	490mm
Spindle taper	MT.3
Spindle speeds range	150-2850/100-2400rpm
Spindle speeds	8
Diamension of base worktable surface	300×320mm
Overall height	955mm
Motor	850w / 1100w
G.W./N.W.	205/170 kgs
Ship measurement	80×54×112cm

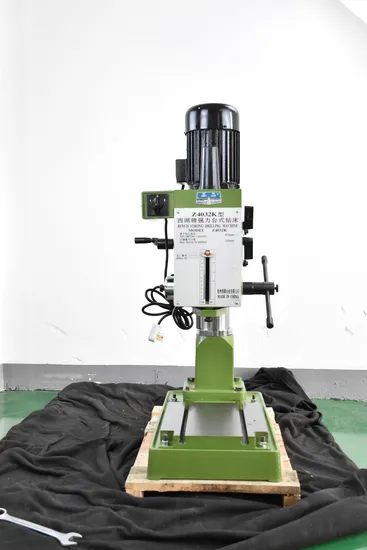

The picture:
