15 Ton Explosion-Proof Pneumatic Hoist/Air Hoist for Textile Mill/Spinning Factory

Product Description

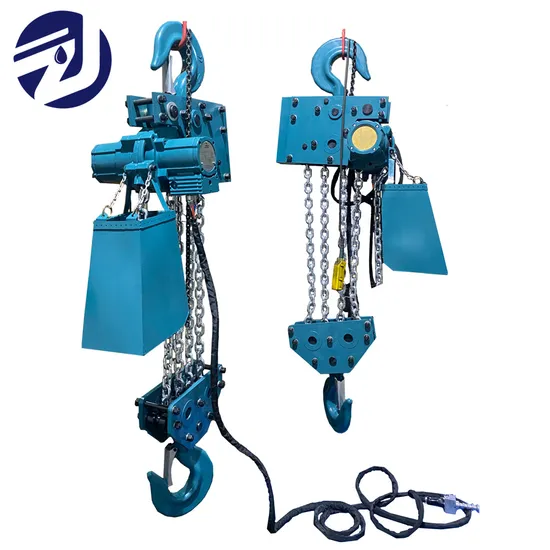

JDT Series High Quality Explosion-proof Pneumatic Hoist/Air Hoist
Introduction:
Practice has proved that the pneumatic hoist is the best choice in any environment where safety is the first priority. Compared with the electric driven, the compressed air as the driving medium will not produce any spark. The features of this structure make the pneumatic hoist especially suitable for working in dangerous environment. Our QDH series pneumatic hoist products are very solid, durable and reliable, they are suitable for using in various of heavy industries and have excellent performance in the following industries: aircraft manfacturing and assembly, chemical industry, dairy products processing factory, electroplating factory, fireworks workshop, food industry, foundry, furniture factory, glass industry, cement plant, mechanical engineering, automobile industry, oil depot, onshore and offshore operations, paint shop, papermaking industry, power plants, fine processing plants, shipbuilding industry, space technology, steel mills, textile industry.
Technical Parameters:

Model	Air Pressure (bar)	Lifting Capacity (ton)	Chain Count	Lifting Height (m)	Full Load Lifting Speed (m/min)	Full Load Descending Speed (m/min)	Full Load Air Consumption (m3/min)	Standard Weight (kg)	Full load Noise With Silencer (dB)
QDH0.25T	6	0.25	1	3	20	38	1.2	27	74
QDH0.5T		0.5	1		11	17	1.2	27	74
QDH1T		1	1		5.5	11	1.2	27	74
QDH1.5T		1.6	1		4	9	1.2	56	74
QDH2T		2	2		2.7	5.5	1.2	66	76
QDH3T		3.2	2		2.5	5.5	1.5	86	76
QDH6T		6.3	2		2.5	5.4	4	110	78
QDH10T		10	2		1.6	3.4	4	156	78
QDH16T		16	3		1	2.1	4	240	78
QDH20T		20	4		0.7	1.6	4	285	78

Note: Please contact us to get more details if you need bigger capacity.
Standard Features:
Applicable to dangerous areas
Sensitive infinite variable control can ensure the accurate lifting of heavy objects
Easy to operate
Suitable for non-lubricating operation
Can be used frequently and infinitely
Low maintenance cost
Not sensitive to dust and humidity, temperatures range from -20ºC to 70ºC
Equipped with overload protection device
Technical Details:
Pneumatic automatic fault prevention, low maintenance blade motor
Sprocket bearing is dustproof ball bearing
Grease planetary gears, all of which are made of quenched and tempered steel
Chains and hooks are made of high quality quenched and tempered steel with a safety factor 5 times the standard tensile strength
Advantages:
Strong, fast, safe and quiet
Enhanced power, extremely reliable and higher lift and drop speeds
Equipped with emergency stop button to quickly cut off air supply
Overload safety devices
Avant garde design and compact structure
Control pipe and other components without protruding design, more reasonable and suitable for horizontal haulage
Suitable for continuous usage, no downtime
