3 Axles Utility Cargo Truck Trailer Bulk Cargo Transport Sidewall Semi Trailer

Product Description

Product Description

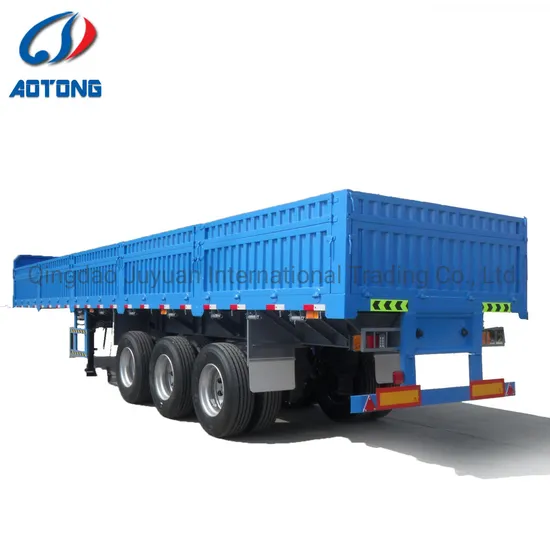

2/3/4 axles flatbed side wall optional cargo transport semi trailer
Color	Any color available as client's need
Rated Load	40-80 Tons
Tare Weight	7-9 Tons
Tyre Specifications	11.00R20/12R22.5
No. Of the Tires	8/12/16
Axle	13 Tons Fuwa / BPW
No. Of the Axles	2/3/4
Leaf-spring	10
Suspension	Leaf spring / Air suspension
Outside Dimensions	10000-14000*2500*2590(mm) (L*W*H)
Main Beam Material	Q345B manganese plates, automatic submerged arc welded Upper:16mm, Lower:16mm, Mid web:8mm The height of beam:500mm, "I" type beam
Brake Air Chamber	Double chambers
Floor	Steel sheet 4mm thickness or diamond plate
King Pin	2 & 3.5 exchangeable king pin
Landing Gear	28000 kg
Spare Wheel Carrier	One set of spare wheel carrier
Accessory	One tooling box with a set of standard trailer tool
Electrical System	24V, 7core socket, lights according to European standards.

AOTONG start from every detail, carefully craft to customize your high-quality semi trailer.
Excellent design ability!
We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design!

Related Products
We also have rich production experience in the following models.Our trailers can be designed according to customer's requirements.
Click to get the models that have been shipped to your country!
Company Profile
★We are the direct factory for all kinds of good quality semi trailers with competitive price.
★It's established in 1992 with more than 30years experience and well equipped testing facilities and strong technical force.
★It covers a total area of 150, 000 square meters with more than 670 workers ( 16 senior titled personnels, 118 professionals).
★Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries.
Welcome to visit our factory!
Customer Recognition
Our services and products are highly recognized by customers!
Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries such as Australia, Singapore, Japan, Sudan, and other Middle East, Southeast Asia and Africa countries. We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Welcome to send us your inquiry at any time to get efficiently feedback!
