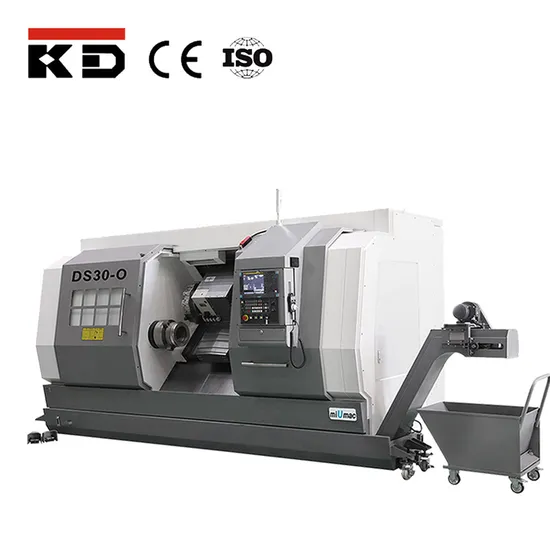

High Precision CNC Slant Bed Wheel Machine Kdcl-30 CNC Lathe
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDCL-30
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
900mm
Spindle Bore
105mm
Max Swing Hub
22"
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
410 Sets/ Year
Product Description
PRODUCT SPECIFICATIONS| MODELS | KDCL-30 |
| CAPACITY | |
| Max.swing over bed | Ф650mm |
| Max.cutting diameter for disc parts | Ф500mm |
| Max.cutting diameter for axle parts | Ф320mm |
| Max. cutting length | 1000mm |
| SPINDLE | |
| Spindle bore | Ф90mm |
| Spindle nose | A2-8 |
| Spindle speed | 2500rpm |
| TRAVEL | |
| X travel | 270mm |
| Z travel | 1060mm |
| FEED | |
| Rapid feed for axis X | 16m/min |
| Rapid feed for axis Z | 20m/min |
| TOOL POST | |
| Tool number | 12 ways hydraulic turret |
| Outside diameter of cutting tool shank | 25×25mm |
| Inner dia.of cutting tool shank | Ф40mm |
| TAILSTOCK | |
| Tailstock sleeve dia. | Ф100mm |
| Tailstock sleeve travel | 200mm |
| Taper hole of tailstock quill | M.T.No.6 |
| OTHERS | |
| Spindle motor power | 18.5/22kw |
| Bed structure | 45° slant bed integrated with stand |
| Min.input | 0.001 |
| Repeatability | ≤0.006mm |
| Hydraulic chuck | 12″ |
| Overall dimensions(L×W×H) | 4250×1980×2260mm |
| Net weight | 7000kg |
